Metric Parallel Female Tee Needle Valve
Metric Parallel Female Tee Needle Valve
SKU:VAL-9983f4
Reliable Metric Parallel Female Tee Needle Valve for hydraulic systems, with customizable pressure options and durable Carbon Steel construction.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Metric Parallel Female Tee Needle Valve
$59.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Female Tee Needle Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

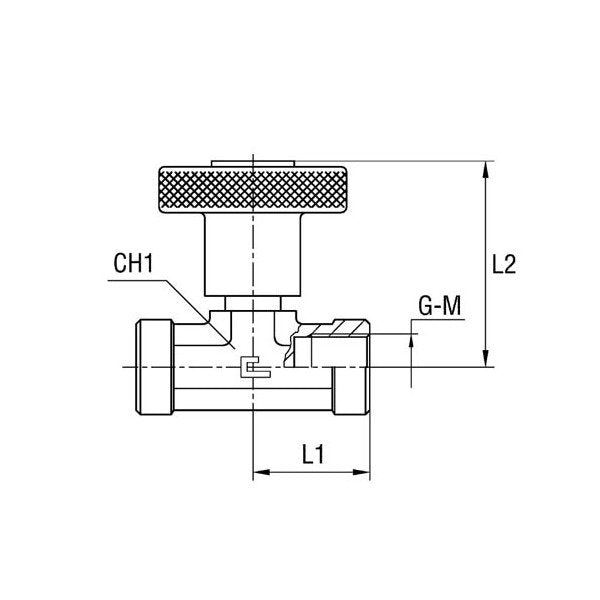

The Metric Parallel Female Tee Needle Valve is designed to provide reliable flow control in hydraulic systems. With options for Extra Light Duty, Heavy Duty, and Light Duty pressures, this valve ensures optimal performance at 350 bar nominal operating pressure. Crafted from durable Carbon Steel, it features an M-thread size of 22x1.5, L1 dimension of 41.0 mm, L2 dimension of 64 mm, and CH1 measurement of 27 mm. Suitable for DIN hydraulic applications.
Product Specifications
Specifications Ch1
27 mm
Specifications L1
41.0 mm
Specifications L2
64 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
