Metric Parallel Female Tee Needle Valve

Name: Metric Parallel Female Tee Needle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-9a96d3
Price: 39.99 USD
Availability: OutOfStock

SKU:VAL-9a96d3

Hydraulic check valve for up to 350 bar pressure, sturdy carbon steel construction, and various duty options. M-Thread Size: 14x1.5.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

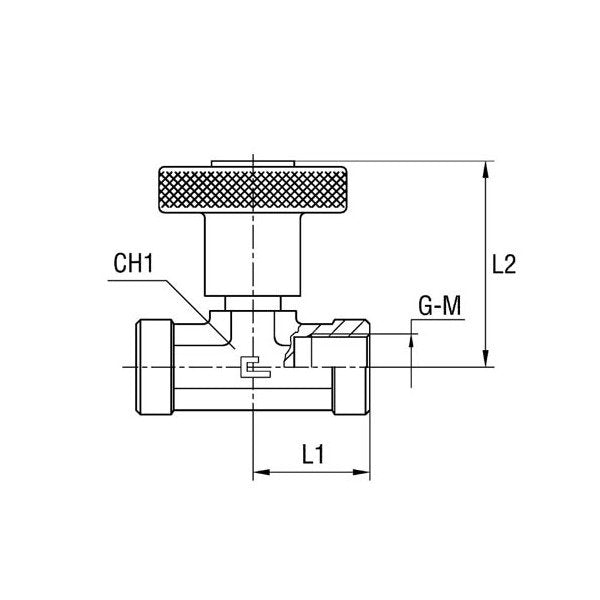

The Metric Parallel Female Tee Needle Valve is a versatile hydraulic check valve designed to withstand pressures up to 350 bar. Made of durable carbon steel, this valve comes in various pressure ratings to suit different duty requirements - Extra Light Duty, Heavy Duty, and Light Duty. With an M-Thread Size of 14x1.5 and precise dimensions of L1: 27.0 mm, L2: 50.0 mm, and CH1: 19.0 mm, it ensures efficient flow control and reliability in hydraulic systems.

Product Specifications

Specifications Ch1

19.0 mm

Specifications L1

27.0 mm

Specifications L2

50.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Metric Parallel Female Tee Needle Valve
