Metric Parallel Male Stud Coupling Body
Metric Parallel Male Stud Coupling Body
SKU:FIT-ed813e
Reliable Metric Parallel Male Stud Coupling for light-duty applications, DIN 2353 compliant, ideal for hydraulic systems.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Metric Parallel Male Stud Coupling Body
$23.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Male Stud Coupling Body
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

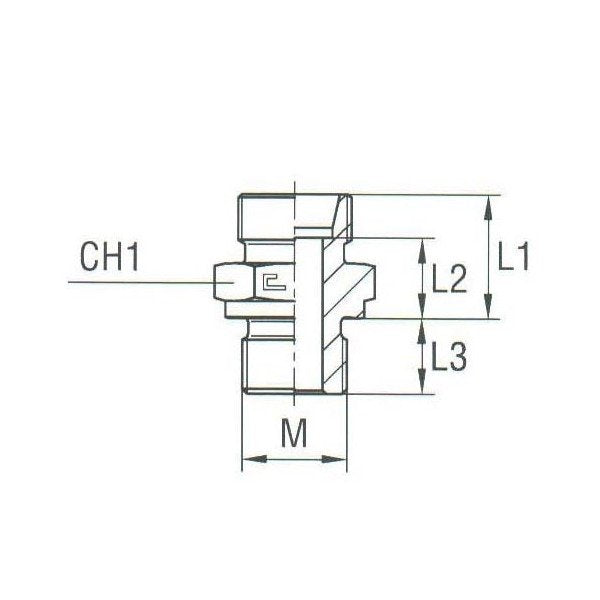

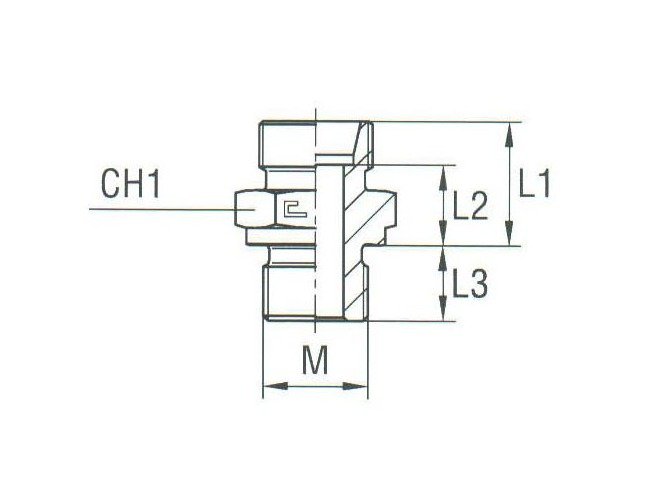

The Metric Parallel Male Stud Coupling Body is designed for light-duty applications, constructed from durable carbon steel. With a tube diameter of 10.0mm and M-thread size of 16x1.5, it operates at a nominal pressure of 315 bar. Compliant with DIN 2353 standards, this coupling ensures secure and reliable connections, with precise dimensions (L1: 19.5mm, L2: 12.5mm, L3: 12.0mm) and enhanced stability (CH1: 22mm). Ideal for hydraulic systems and industrial machinery, this coupling guarantees efficient performance and longevity.
Product Specifications
Specifications Ch1
22 mm
Specifications L1
19.5 mm
Specifications L2
12.5 mm
Specifications L3
12.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling Thread Metric Parallel
