Metric Parallel Male Stud Coupling - Carbon Steel Body

Name: Metric Parallel Male Stud Coupling - Carbon Steel Body
Brand: World Wide Metric, Inc.
SKU: FIT-f24aa3
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-f24aa3

Durable Metric Parallel Male Stud Coupling for light duty pressure applications, DIN 2353 compliant, 315 bar pressure capacity.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

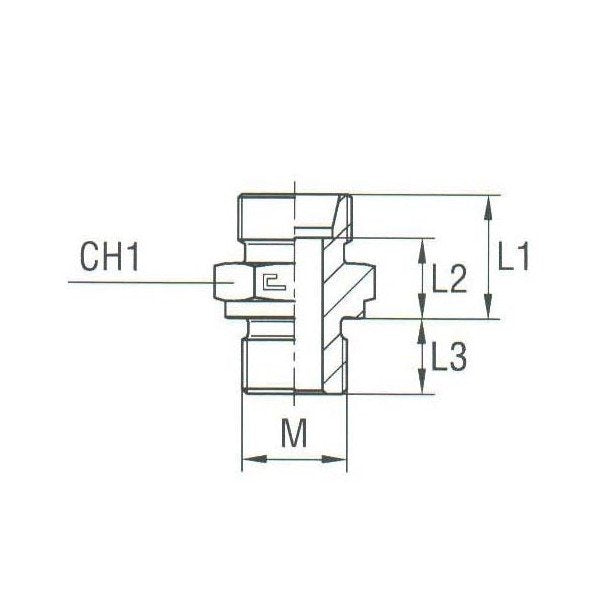

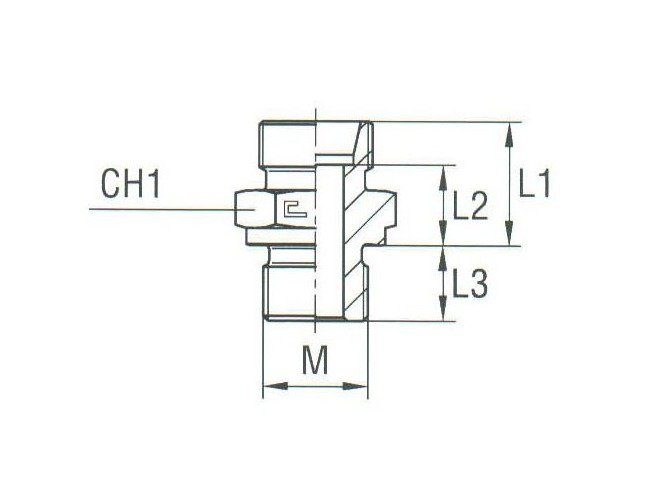

The Metric Parallel Male Stud Coupling features light duty pressure capability suitable for various applications. Constructed from durable carbon steel, it ensures reliable performance under pressure. With a tube diameter of 15.0 mm and M - Thread Size of 16x1.5, this coupling meets DIN 2353 standards, providing a nominal operating pressure of 315 bar. The precise design includes dimensions L1: 20.0 mm, L2: 13.0 mm, L3: 12.0 mm, and CH1: 24 mm, making it a dependable choice for hydraulic systems.

Product Specifications

Specifications Ch1

24 mm

Specifications L1

20.0 mm

Specifications L2

13.0 mm

Specifications L3

12.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

16x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

15.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel
