Metric Parallel Male Stud Coupling - Stainless Steel DIN 2353 Compliant
Metric Parallel Male Stud Coupling - Stainless Steel DIN 2353 Compliant
SKU:FIT-906819
Durable stainless steel Male Stud Coupling for 8.0mm tubes, DIN 2353 compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Metric Parallel Male Stud Coupling - Stainless Steel DIN 2353 Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Male Stud Coupling - Stainless Steel DIN 2353 Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Parallel Male Stud Coupling is designed for light-duty applications, featuring stainless steel construction and a tube diameter of 8.0mm. With a pressure rating of 315 bar, this coupling is built to withstand demanding environments. Compliant with DIN 2353 standards, it ensures reliable performance and longevity for industrial use.

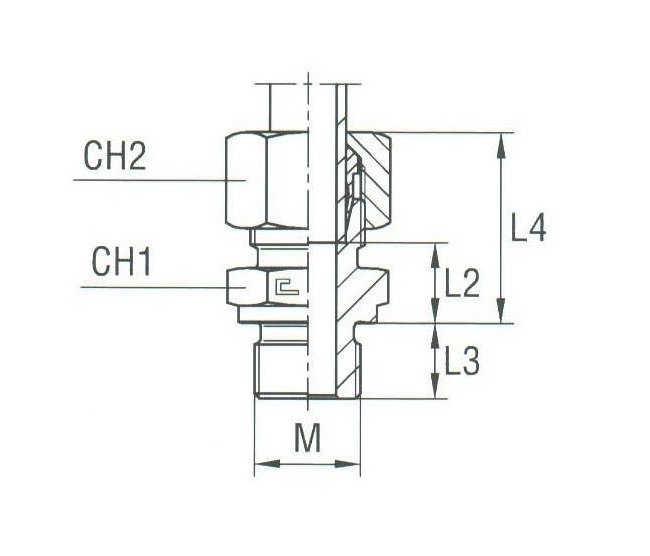

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
17.0 mm
Specifications L2
10.0 mm
Specifications L3
12.0 mm
Specifications L4
25.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
12x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
Category 6
Male Stud Coupling Thread Metric Parallel
