Metric Parallel Male Stud Coupling with B3 Ring

Name: Metric Parallel Male Stud Coupling with B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-2472ed
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-2472ed

Durable carbon steel male stud coupling with metric parallel threading for 10.0mm tubes, meets DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Parallel Male Stud Coupling with B3 Ring is designed for light-duty applications, crafted from durable carbon steel. With a tube diameter of 10.0mm and a thread size of 22x1.5, it can handle a nominal operating pressure of 315 bar. This coupling meets DIN 2353 standards and ensures reliable performance with precise measurements to fit various industrial needs.

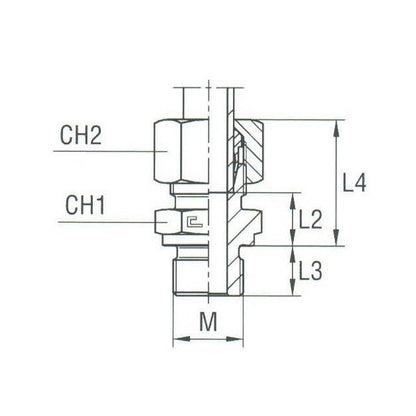

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

19.0 mm

Specifications L2

14.0 mm

Specifications L3

14.0 mm

Specifications L4

29 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel
