Metric Parallel Male Stud Coupling with B3 Ring

Name: Metric Parallel Male Stud Coupling with B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-ca5f08
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-ca5f08

Durable Metric Parallel Male Stud Coupling for light-duty applications, meeting DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

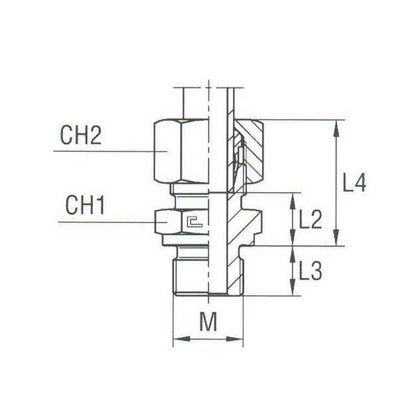

The Metric Parallel Male Stud Coupling with B3 Ring is designed for light-duty applications, crafted from durable Carbon Steel. With a Tube Diameter of 12.0mm and an M - Thread Size of 22x1.5, this coupling can handle a Nominal Operating Pressure of 315 bar. Meeting DIN 2353 standards, it features precise dimensions (L2: 14.0mm, L3: 14.0mm, L4: 28.5mm, CH1: 27mm, CH2: 22mm) ensuring reliable performance and easy installation.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

22 mm

Specifications L2

14.0 mm

Specifications L3

14.0 mm

Specifications L4

28.5 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel
