Metric Parallel Male Stud Coupling with B3 Ring

Name: Metric Parallel Male Stud Coupling with B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-c68912
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-c68912

High-quality Metric Parallel Male Stud Coupling with B3 Ring for light-duty applications, conforms to DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Parallel Male Stud Coupling featuring B3 Ring is designed for light-duty applications in fluid systems. Crafted from high-quality Carbon Steel, it ensures durability and reliability under pressure. With a Tube Diameter of 15.0mm and M - Thread Size of 22x1.5, this coupling operates at a Nominal Pressure of 315 bar. Conforming to DIN 2353 standards, it delivers precision and performance in various industrial settings.

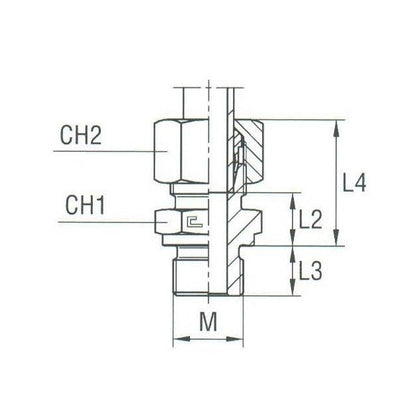

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

27 mm

Specifications L2

15 mm

Specifications L3

14.0 mm

Specifications L4

30 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

15.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel

Metric Parallel Male Stud Coupling with B3 Ring
