Metric Parallel Male Stud Coupling with B3 Ring

Name: Metric Parallel Male Stud Coupling with B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-70bb64
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-70bb64

Durable Metric Parallel Male Stud Coupling for light-duty applications, compliant with DIN 2353 standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

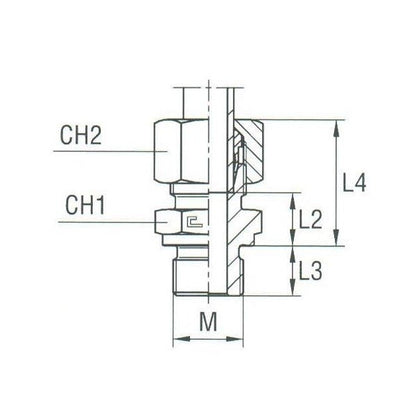

The Metric Parallel Male Stud Coupling with B3 Ring is designed for light-duty applications, constructed with durable carbon steel. Featuring a tube diameter of 12.0mm and an M-thread size of 18x1.5, this coupling ensures a reliable connection with a nominal operating pressure of 315 bar. Compliant with DIN 2353 standards, it offers precise dimensions including L2: 12.5mm, L3: 12.0mm, L4: 27mm, CH1: 24mm, and CH2: 22mm.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

22 mm

Specifications L2

12.5 mm

Specifications L3

12.0 mm

Specifications L4

27 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

18x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
