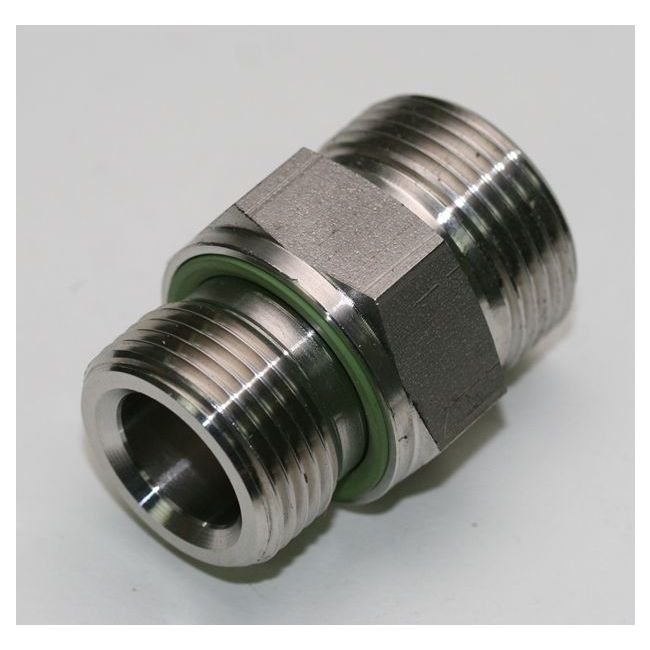

Metric Parallel Male Stud Coupling with Elastomer Seal
Metric Parallel Male Stud Coupling with Elastomer Seal
SKU:FIT-322b6f
Durable Metric Parallel Male Stud Coupling for reliable hydraulic connections. Meet DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Metric Parallel Male Stud Coupling with Elastomer Seal
$24.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Male Stud Coupling with Elastomer Seal
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

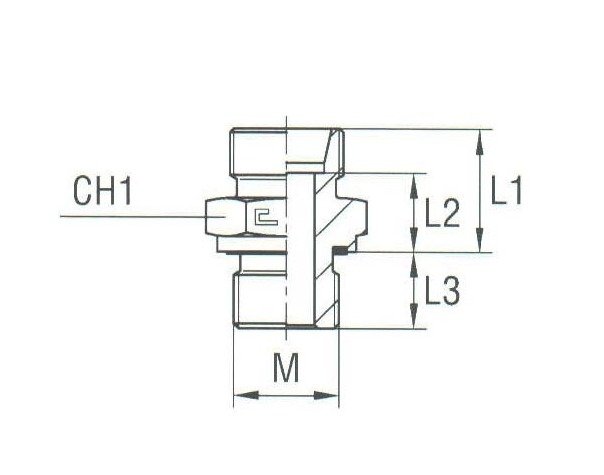

The Metric Parallel Male Stud Coupling with Elastomer Seal is a high-quality fitting designed for light-duty applications. Made of durable carbon steel, this coupling ensures a secure connection with a tube diameter of 15.0 mm and M-thread size of 22x1.5. With a nominal operating pressure of 315 bar and meeting DIN 2353 standards, it offers reliability and performance. The male stud coupling features precise dimensions (L1: 22 mm, L2: 15 mm, L3: 14.0 mm, CH1: 27 mm) for seamless integration into hydraulic systems.
Product Specifications
Specifications Ch1
27 mm
Specifications L1
22 mm
Specifications L2
15 mm
Specifications L3
14.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
15.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread Metric Parallel
