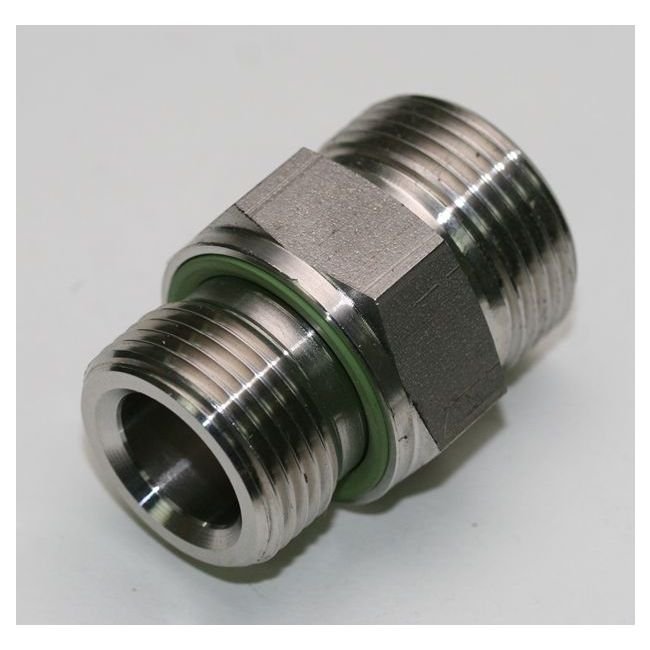

Metric Parallel Male Stud Coupling with Elastomer Seal - Carbon Steel Body

Name: Metric Parallel Male Stud Coupling with Elastomer Seal - Carbon Steel Body
Brand: World Wide Metric, Inc.
SKU: FIT-ee92fb
Price: 18.99 USD
Availability: OutOfStock

SKU:FIT-ee92fb

Reliable Metric Parallel Male Stud Coupling for light-duty applications with carbon steel body. DIN 2353 compliant.

$18.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

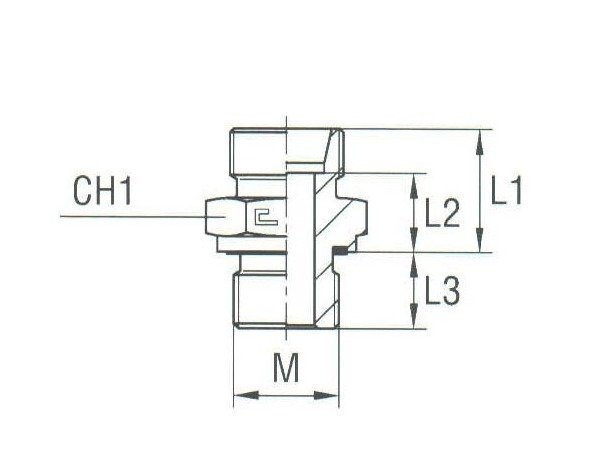

The Metric Parallel Male Stud Coupling with Elastomer Seal features a carbon steel body, designed for light-duty applications with a 6.0mm tube diameter and a 10x1 M-thread size. Operating at a nominal pressure of 315 bar, this coupling meets DIN 2353 standards, ensuring reliability and performance in fluid systems. Its compact design, with precise dimensions of L1: 15.5mm, L2: 8.5mm, L3: 8.0mm, and CH1: 14mm, makes it ideal for hydraulic installations requiring durability and leak-free connections.

Product Specifications

Specifications Ch1

14 mm

Specifications L1

15.5 mm

Specifications L2

8.5 mm

Specifications L3

8.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

10x1

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
