Metric Parallel Male Stud Coupling with Elastomer Seal - DIN 2353, B3 Ring

Name: Metric Parallel Male Stud Coupling with Elastomer Seal - DIN 2353, B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-adf3f8
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-adf3f8

Reliable Metric Parallel Male Stud Coupling for light-duty applications. DIN 2353 compliant, with 315 bar nominal pressure.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Parallel Male Stud Coupling with Elastomer Seal is designed for light-duty applications, constructed from high-quality carbon steel. With a tube diameter of 12.0mm and a rated operating pressure of 315 bar, this coupling ensures reliable performance. Meeting DIN 2353 standards, it features precise dimensions including M-thread size 14x1.5 for secure connections. The elastomer seal provides leak-free operations, making it ideal for industrial use.

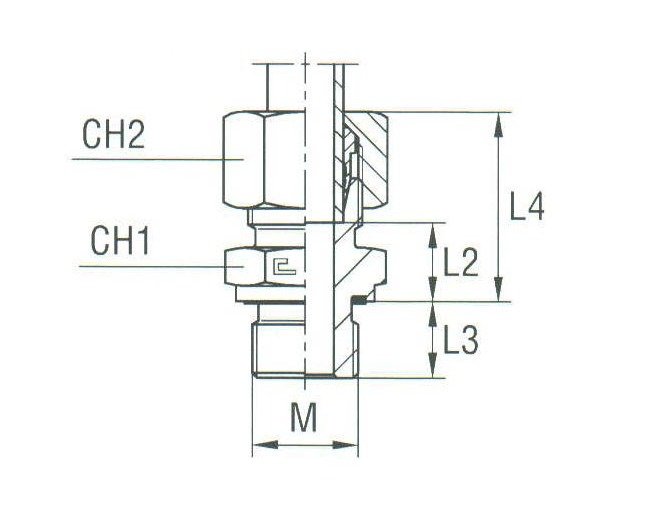

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

22 mm

Specifications L2

12.5 mm

Specifications L3

12.0 mm

Specifications L4

27 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
