Metric Parallel Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant

Name: Metric Parallel Male Stud Coupling with Elastomer Seal - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-a46a68
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-a46a68

Premium Metric Parallel Male Stud Coupling for secure and efficient tube connections. DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Parallel Male Stud Coupling with Elastomer Seal is designed for light-duty applications with a pressure rating of 315 bar. Made of high-quality carbon steel, this fitting ensures a secure connection for tubes with a 10.0mm diameter. With precise measurements meeting DIN 2353 standards, it features a 22x1.5 M-thread, making it ideal for industrial usage. The Elastomer Seal enhances sealing efficiency, while the Straight Male Stud design with Equipped B4 Ring ensures easy installation and reliable performance.

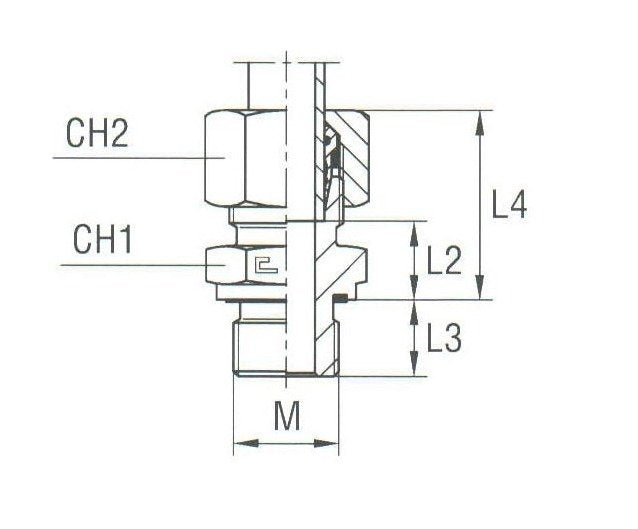

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

19.0 mm

Specifications L2

14.0 mm

Specifications L3

14.0 mm

Specifications L4

29 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling with Elastomer Seal Thread Metric Parallel
