Metric Parallel Male Stud Coupling with Equipped B3 Ring

Name: Metric Parallel Male Stud Coupling with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-2112d6
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-2112d6

Durable Male Stud Coupling for light-duty applications, meets DIN 2353 standards. Tube Diameter: 10.0mm, Pressure: 315 bar

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

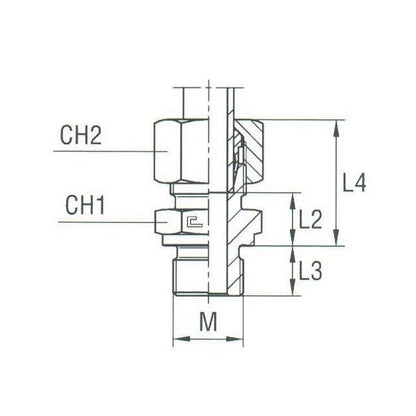

The Metric Parallel Male Stud Coupling with Equipped B3 Ring is a premium fitting designed for light-duty applications. Made of durable carbon steel, it features a tube diameter of 10.0mm and an M-thread size of 14x1.5, suitable for a nominal operating pressure of 315 bar. With dimensions meeting DIN 2353 standards and precise construction including L2: 11.0mm, L3: 12.0mm, L4: 26mm, CH1: 19.0mm, and CH2: 19.0mm, this fitting ensures reliable performance and easy installation.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications L2

11.0 mm

Specifications L3

12.0 mm

Specifications L4

26 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel
