Metric Parallel Male Stud Coupling with Equipped B3 Ring
Metric Parallel Male Stud Coupling with Equipped B3 Ring
SKU:FIT-0686b3
Durable carbon steel Male Stud Coupling with precise DIN 2353 compliance. Best for 22mm tubes at 160 bar.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Metric Parallel Male Stud Coupling with Equipped B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Male Stud Coupling with Equipped B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

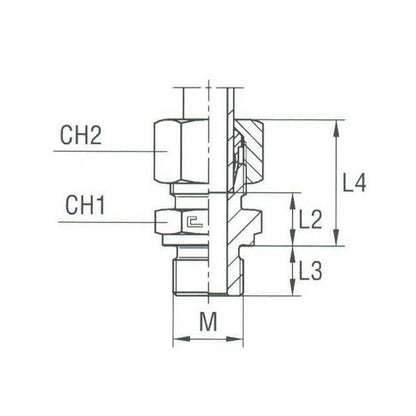

The Metric Parallel Male Stud Coupling with Equipped B3 Ring is designed for light-duty applications, crafted from durable carbon steel. With a tube diameter of 22mm and M-thread size of 26x1.5, it operates at a nominal pressure of 160 bar. This coupling, compliant with DIN 2353 standards, features precise dimensions including L2: 16.5mm, L3: 16.0mm, L4: 33mm, CH1: 32mm, and CH2: 36mm. Ensure reliable connections and performance with this high-quality fitting.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
36 mm
Specifications L2
16.5 mm
Specifications L3
16.0 mm
Specifications L4
33 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
26x1.5
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
22 mm
Category 6
Male Stud Coupling Thread Metric Parallel
