Metric Parallel Male Stud Coupling with Equipped B3 Ring

Name: Metric Parallel Male Stud Coupling with Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-c96e21
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-c96e21

High-quality Stainless Steel Metric Male Stud Coupling for Light-Duty Applications, DIN 2353 Compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

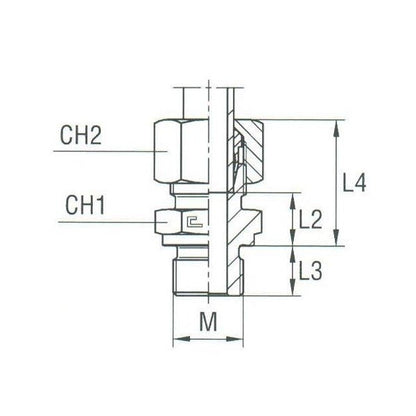

The Metric Parallel Male Stud Coupling with Equipped B3 Ring is a durable fitting designed for light-duty applications. Constructed from high-quality stainless steel, this coupling ensures reliable performance under pressure up to 315 bar. With precise tube diameter of 6.0mm and threaded size of 10x1, it meets DIN 2353 standards. The Male Stud Coupling is meticulously crafted with dimensions L2: 8.5mm, L3: 8.0mm, L4: 23mm, CH1: 14mm, CH2: 14mm, offering exceptional functionality and ease of installation for various hydraulic systems.

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

14 mm

Specifications L2

8.5 mm

Specifications L3

8.0 mm

Specifications L4

23 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

10x1

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Coupling Thread Metric Parallel

Metric Parallel Male Stud Coupling with Equipped B3 Ring
