Metric Parallel Male Stud Coupling with O-Ring and Washer - DIN 2353 Compliant

Name: Metric Parallel Male Stud Coupling with O-Ring and Washer - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-fe47f4
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-fe47f4

Reliable Metric Parallel Male Stud Coupling for extra light duty applications. DIN 2353 compliant, ideal for 4.0mm tube with 10x1 M-thread.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

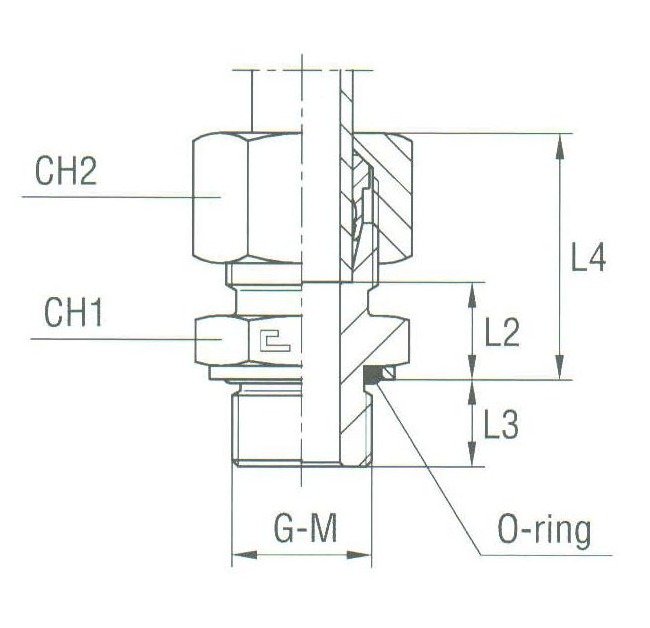

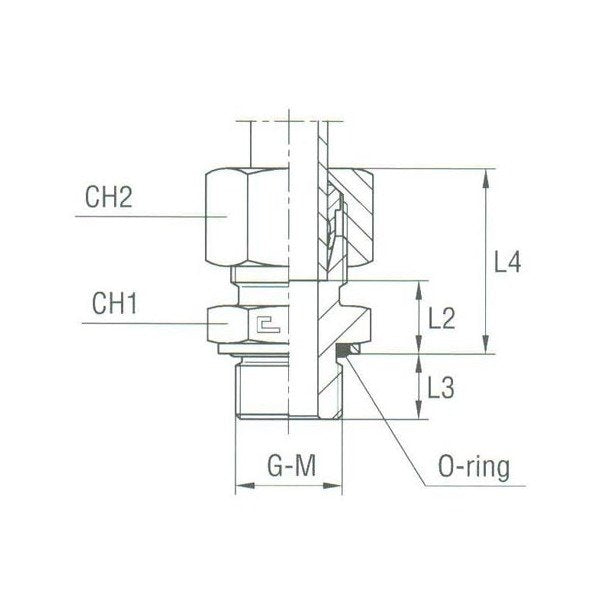

The Metric Parallel Male Stud Coupling with O-Ring and Washer is designed for extra light duty applications. Made of carbon steel, with a tube diameter of 4.0mm and M-thread size of 10x1, this coupling ensures a secure and leak-free connection. With a nominal operating pressure of 100 bar and meeting DIN 2353 standards, it offers reliability and efficiency. The precise dimensions of L2, L3, L4, CH1, and CH2 make it suitable for various compression fitting needs.

Product Specifications

Specifications Ch1

14 mm

Specifications Ch2

10 mm

Specifications L2

9.5 mm

Specifications L3

7.5 mm

Specifications L4

20 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

10x1

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Extra Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

4.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
