Metric Parallel Male Stud Non Return Valve with Elastomer Seal
Metric Parallel Male Stud Non Return Valve with Elastomer Seal
SKU:VAL-eb42f1
High-performance stainless steel non return valve for hydraulic systems. Operating pressure: 350 bar.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Metric Parallel Male Stud Non Return Valve with Elastomer Seal
$59.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Male Stud Non Return Valve with Elastomer Seal
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

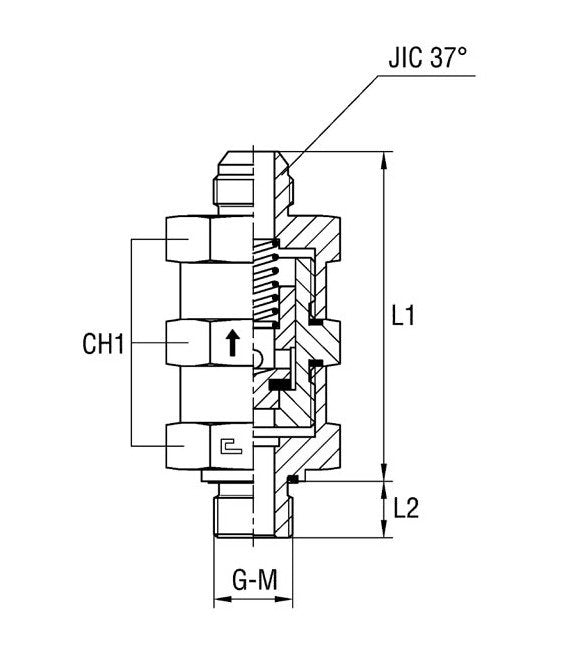

The Metric Parallel Male Stud Non Return Valve with Elastomer Seal offers reliable performance in hydraulic systems with operating pressures up to 350 bar. Crafted from durable stainless steel, this valve features thread size 27x2 and tube diameters of 18mm or 20mm, meeting rigorous industry standards for extra light duty, heavy duty, and light duty applications. With a precise design including L1 of 90.9mm and L2 of 16.0mm, this valve ensures efficient flow control and pressure management.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
90.9 mm
Specifications L2
16.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
27x2
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
