The Metric Parallel Male Stud Non Return Valve with Elastomer Seal offers reliable performance in hydraulic systems. Designed for Extra Light, Heavy, and Light Duty pressures up to 350 bar, this valve features a 12mm tube diameter, 16x1.5 thread size, and durable carbon steel construction. With a 3/4-16 JIC 37° thread and 8mm diameter pass, it ensures secure sealing and efficient fluid control. Ideal for DIN Check Valve applications, this valve is a trusted choice for institutional and government procurement due to its precision engineering and compliance with industry standards.

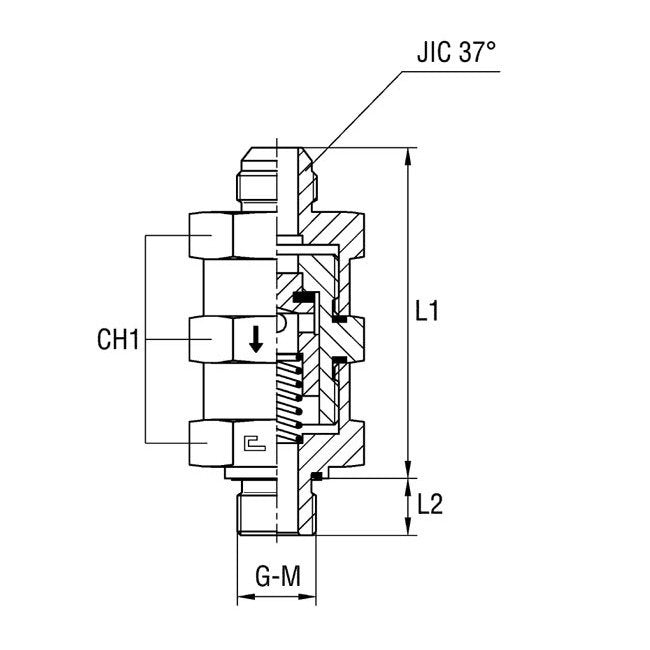

Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
73.2 mm
Specifications L2
12.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
16x1.5
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
