Metric Parallel Male Stud Non Return Valve with Elastomer Seal
Metric Parallel Male Stud Non Return Valve with Elastomer Seal
SKU:VAL-9e978c
Rugged stainless steel Metric Parallel Male Stud Non Return Valve for hydraulic systems. Nominal pressure: 350 bar.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metric Parallel Male Stud Non Return Valve with Elastomer Seal
$29.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Male Stud Non Return Valve with Elastomer Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Parallel Male Stud Non-Return Valve with Elastomer Seal ensures smooth hydraulic operations with nominal operating pressure up to 350 bar. Crafted from durable stainless steel, it features various tube diameters and precise thread sizes, meeting rigorous industry standards for extra light, heavy, and light-duty applications. Ideal for hydraulic systems requiring secure sealing and reliable performance.

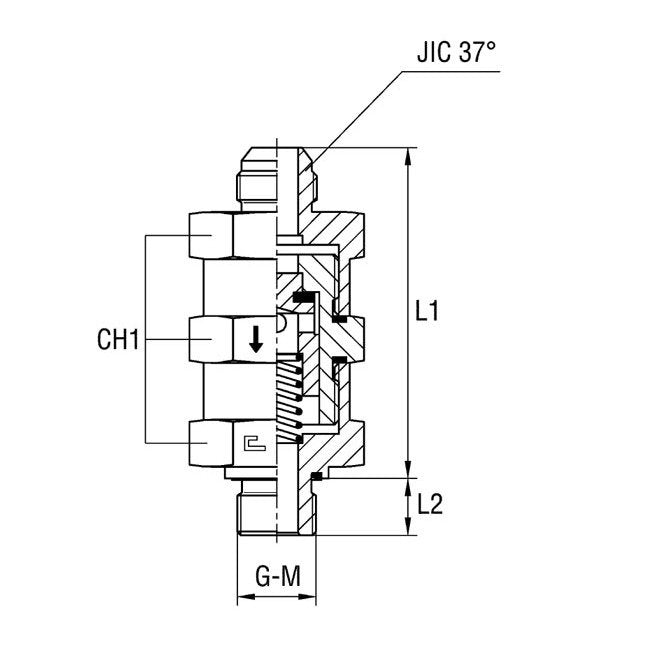

Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
2.8 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
64.0 mm
Specifications L2
8.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
10x1
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/4 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
