Metric Parallel Male Stud Non Return Valve with Elastomer Seal

Name: Metric Parallel Male Stud Non Return Valve with Elastomer Seal
Brand: World Wide Metric, Inc.
SKU: FIT-9d65e6
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-9d65e6

Reliable Metric Parallel Male Stud Non Return Valve for hydraulic systems, with stainless steel construction.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

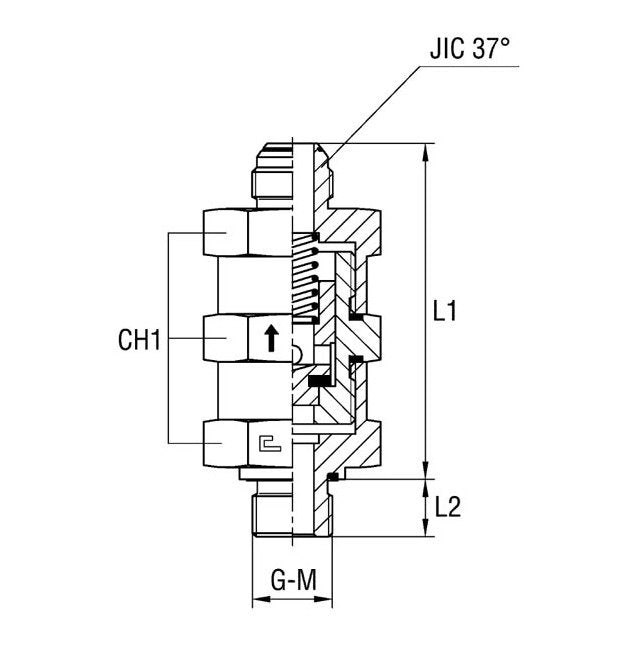

The Metric Parallel Male Stud Non Return Valve offers reliability and performance in hydraulic systems. With pressure options for Extra Light Duty, Heavy Duty, and Light Duty, and a nominal operating pressure of 350 bar, it ensures optimal flow control. Made of durable stainless steel, this valve features precise dimensions to meet industry standards, with a 6mm M-tube diameter and 1/4in W-tube diameter. The threaded 10x1 M-thread size and 7/16-20 JIC 37° thread ensure secure connections, while the compact design with a 2.8mm diameter pass helps streamline installations.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

2.8 mm

Specifications Jic 37 Thread

7/16-20

Specifications L1

64.0 mm

Specifications L2

8.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

10x1

Specifications M Tube Diameter

6 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1/4 in

Metric Parallel Male Stud Non Return Valve with Elastomer Seal
