Metric Parallel Male Stud Non Return Valve with Elastomer Seal - Standard Body
Metric Parallel Male Stud Non Return Valve with Elastomer Seal - Standard Body
SKU:FIT-8e4bf1
Ensure precise fluid control with our Metric Parallel Male Stud Non Return Valve - Heavy-duty, Stainless Steel construction.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Metric Parallel Male Stud Non Return Valve with Elastomer Seal - Standard Body
$69.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Male Stud Non Return Valve with Elastomer Seal - Standard Body
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

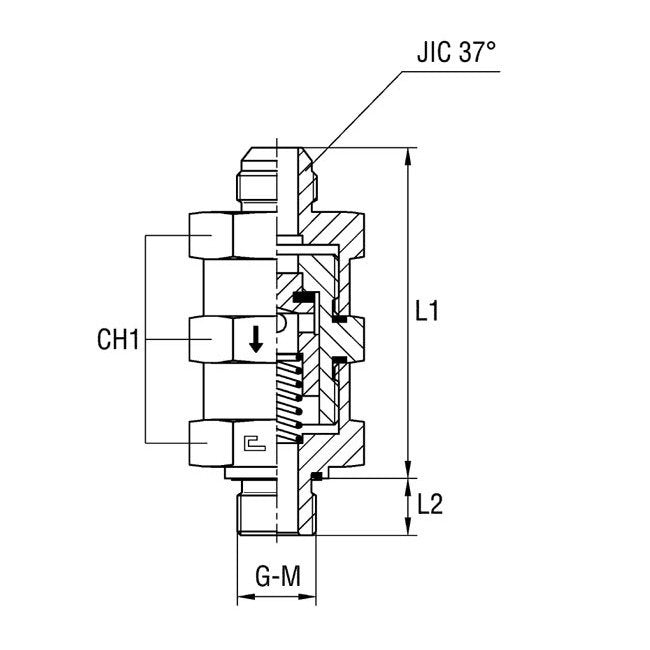

The Metric Parallel Male Stud Non Return Valve with Elastomer Seal ensures reliable fluid flow control in hydraulic systems. With a pressure rating ranging from Extra Light Duty to Heavy Duty, operating at 240 bar, this valve is constructed from high-grade Stainless Steel for durability. Its precision design features a 48x2 thread size and 1 7/8-12 JIC 37° Thread, meeting industry standards for performance and longevity.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
114.5 mm
Specifications L2
22 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
48x2
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/2 in
