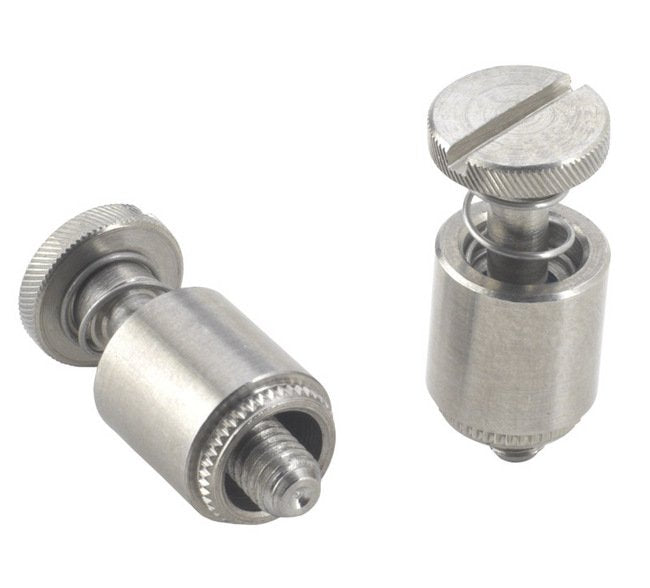

• Metric PFK Captive Screws for PC Boards - Image 1
  • Metric PFK Captive Screws for PC Boards - Image 2

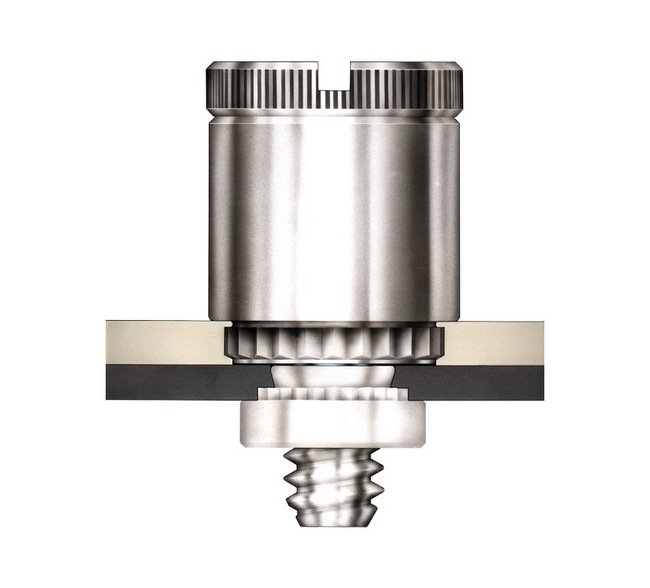

  • Metric PFK Captive Screws for PC Boards - Image 3
1 3
Hi-Tech Fasteners, Inc. →

Metric PFK Captive Screws for PC Boards

Metric PFK Captive Screws for PC Boards

PEM-c0f6a1

High-quality Metric PFK Captive Screws for PC boards, M3 x 0.5 thread size, 300 Series Stainless Steel with Passivated finish. ANSI/ASME B1.13M compliant.

$24.99
$24.99
Sale

Initiate Order

Metric PFK Captive Screws for PC Boards

Metric PFK Captive Screws for PC Boards

$24.99

Quantity: 1

Claim Your Seller Account

Metric PFK Captive Screws for PC Boards

Metric PFK Captive Screws for PC Boards

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Metric PFK Captive Screws are designed for secure fastening on PC boards with a thread size of M3 x 0.5. Made of high-quality 300 Series Stainless Steel, these screws ensure durability and reliability. With Passivated finishing per ASTM A380 standards, they offer corrosion resistance. These screws meet ANSI/ASME B1.13M, 6g thread specifications and are suitable for sheets with a hardness of HRB 70 or less. Perfect for industrial and electronic applications, these screws provide secure retention and easy installation.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

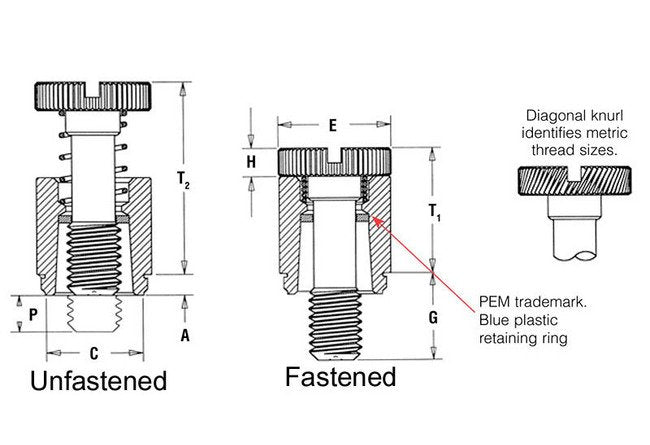

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C 008
7.19 mm
Specifications E 025
7.92 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 04
9.50 mm
Specifications Hole Size In Sheet 008
6.73 mm
Specifications H 013
1.83 mm
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
5.08 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
3.20 mm
Specifications Screw Length Code
62
Specifications T1 Max
9.14 mm
Specifications T2 Nom
13.72 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFK
