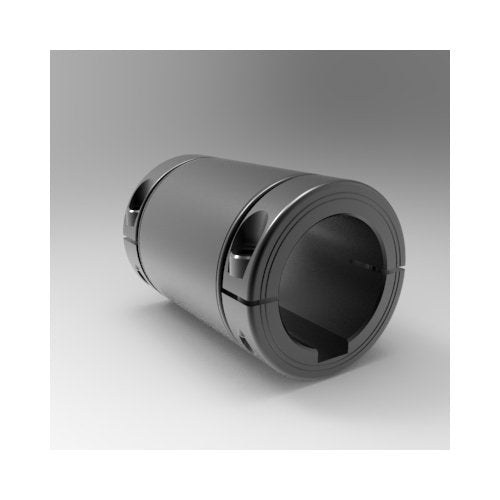

Metric Precision Sleeve Coupling with Keyways

Name: Metric Precision Sleeve Coupling with Keyways
Brand: Stafford Manufacturing Corp.
SKU: ROU-51c3ee
Price: 100.02 USD
Availability: OutOfStock

SKU:ROU-51c3ee

Achieve precise shaft alignment with the Metric Precision Sleeve Coupling. Built for durability and accuracy, this coupling ensures zero backlash and exceptional performance.

$100.02

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Precision Sleeve Coupling with Keyways is a top-tier Accu-Clamp™ product designed for precise shaft alignment and zero backlash. Crafted from high-grade steel alloy with a black oxide finish, this coupling boasts an axial runout of less than .001" TIR. With a solid center section ensuring a close tolerance fit, keyways for additional security, and Stafford's exclusive self-centering clamping collars, this coupling guarantees exceptional performance and durability. Ideal for industrial applications requiring unmatched precision and reliability.

Product Specifications

Dimensional Attributes Bore Size A

25 mm

Dimensional Attributes Bore Size B

25 mm

Dimensional Attributes Keyway A

8 mm

Dimensional Attributes Keyway B

8 mm

Dimensional Attributes Outside Diameter

45 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 18

Dimensional Attributes Total Length

65 mm

Specifications Alloy

1215

Specifications Approximate Weight

1.06 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

100.02 USD

Specifications Material

Steel

Specifications Part Number

5LM025025KPSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786042577
