Metric Precision Sleeve Coupling with Keyways
Metric Precision Sleeve Coupling with Keyways
SKU:ROU-0a58c0
Get optimal shaft alignment with the Metric Precision Sleeve Coupling - perfect for industrial applications.
Regular price
$84.30
Regular price
Sale price
$84.30
Unit price
per
Initiate Order
Metric Precision Sleeve Coupling with Keyways
$84.30
Quantity: 1
Claim Your Seller Account
Metric Precision Sleeve Coupling with Keyways
$84.30
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

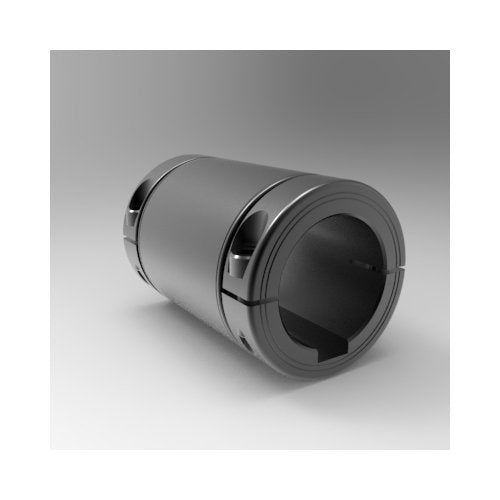

The Metric Precision Sleeve Coupling with Keyways is a premium one-piece split coupling designed for precise shaft alignment and zero backlash. Made from steel with black oxide finish, this precision sleeve coupling features axial runout less than 0.001" TIR for superior performance. Its exclusive design includes clamp screws in opposing directions, integral self-centering clamping collars, and a solid center section with a standard keyway. Ideal for industrial applications requiring strict alignment tolerance, this coupling ensures minimal shaft damage and optimal shaft connection. Purchase the Metric Precision Sleeve Coupling for reliable, accurate, and durable shaft coupling solutions.
Product Specifications
Dimensional Attributes Bore Size A
18 mm
Dimensional Attributes Bore Size B
18 mm
Dimensional Attributes Keyway A
6 mm
Dimensional Attributes Keyway B
6 mm
Dimensional Attributes Outside Diameter
36 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M5 x 0.8 x 16
Dimensional Attributes Total Length
60 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.67 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
84.3 USD
Specifications Material
Steel
Specifications Part Number
5LM018018KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042553
