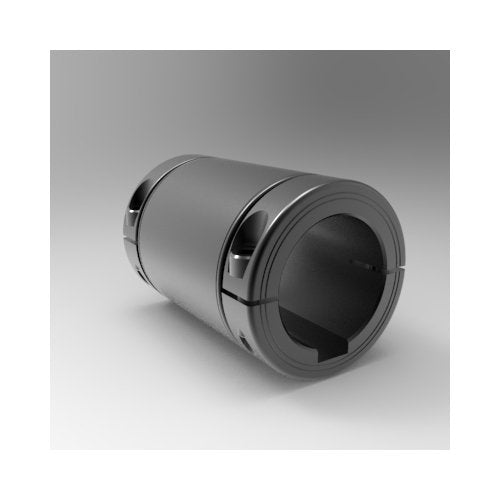

Metric Precision Sleeve Couplings with Keyways

Name: Metric Precision Sleeve Couplings with Keyways
Brand: Stafford Manufacturing Corp.
SKU: ROU-ed005c
Price: 59.99 USD
Availability: OutOfStock

SKU:ROU-ed005c

Upgrade to precision with Stafford's Metric Couplings. Perfect alignment, zero backlash.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade to Stafford's Precision Sleeve Couplings with Keyways for impeccable shaft alignment and zero backlash. With a fully metric design and axial runout less than 0.001" TIR, these sleeve couplings ensure a close-tolerance fit on ground shafting. The exclusive Accu-Clamp™ feature integrates self-centering clamping collars for enhanced precision and ease of installation. Made of high-quality steel with a black oxide finish, this reliable coupling includes standard keyways and smooth bores to protect shafts from damage.

Product Specifications

Dimensional Attributes Bore Size A

35 mm

Dimensional Attributes Bore Size B

35 mm

Dimensional Attributes Keyway A

10 mm

Dimensional Attributes Keyway B

10 mm

Dimensional Attributes Outside Diameter

57 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 18

Dimensional Attributes Total Length

80 mm

Specifications Alloy

1215

Specifications Approximate Weight

1.969 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

5LM035035KPSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786042591

Metric Precision Sleeve Couplings with Keyways
