Metric Precision Sleeve Couplings with Keyways
Metric Precision Sleeve Couplings with Keyways
SKU:ROU-a47b27
High-precision Metric Sleeve Couplings for optimal shaft alignment and easy assembly, featuring keyways and Accu-Clamp™ design.
Regular price
$151.36
Regular price
Sale price
$151.36
Unit price
per
Initiate Order
Metric Precision Sleeve Couplings with Keyways
$151.36
Quantity: 1
Claim Your Seller Account
Metric Precision Sleeve Couplings with Keyways
$151.36
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

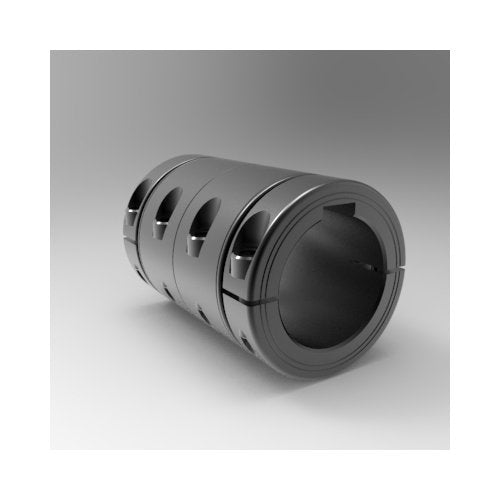

The Metric Precision Sleeve Couplings with Keyways are part of our Signature series, designed with a balanced screw head configuration for optimal performance. Made from high-grade steel with a black oxide finish, these two-piece split couplings ensure precise shaft alignment with axial runout less than .001" TIR. Featuring keyways on both sides, a smooth bore to protect shafts, and the exclusive Accu-Clamp™ design for easy assembly and adjustment, these couplings are precision machined and offer high clamping power. Stocked in the USA, these couplings meet RoHS2 and REACH compliance standards.
Product Specifications
Dimensional Attributes Bore Size A
25 mm
Dimensional Attributes Bore Size B
25 mm
Dimensional Attributes Keyway A
8 mm
Dimensional Attributes Keyway B
8 mm
Dimensional Attributes Outside Diameter
45 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M6 x 1.0 x 18
Dimensional Attributes Total Length
65 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.96 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
151.36 USD
Specifications Material
Steel
Specifications Part Number
5LM025025FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042683
