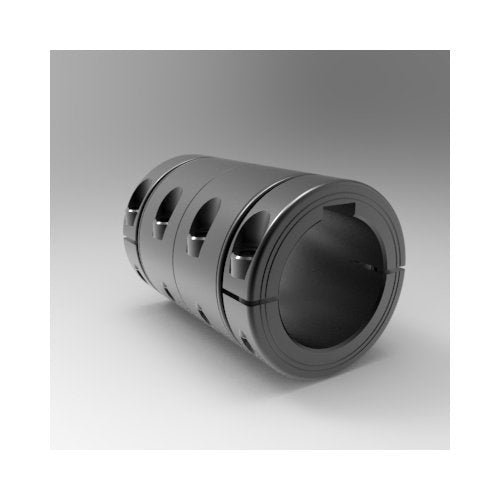

Metric Precision Sleeve Couplings with Keyways
Metric Precision Sleeve Couplings with Keyways
SKU:ROU-0f7756
Achieve precise shaft alignment with Metric Precision Sleeve Couplings. Balanced design, keyways included, high clamping power. RoHS2 and REACH compliant, made in the USA.
Regular price
$159.49
Regular price
Sale price
$159.49
Unit price
per
Initiate Order
Metric Precision Sleeve Couplings with Keyways
$159.49
Quantity: 1
Claim Your Seller Account
Metric Precision Sleeve Couplings with Keyways
$159.49
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Precision Sleeve Couplings with Keyways offer unparalleled precision and convenience for shaft alignment. Featuring a balanced design with clamp screws in opposing directions, these couplings ensure axial runout less than .001" TIR. This two-piece set includes standard keyways and Stafford's exclusive Accu-Clamp™ design for easy assembly, adjustment, and high clamping power. Crafted from high-quality steel with a black oxide finish, these couplings are RoHS2 and REACH compliant, meeting stringent industry standards for quality and performance. Made in the USA.
Product Specifications
Dimensional Attributes Bore Size A
35 mm
Dimensional Attributes Bore Size B
35 mm
Dimensional Attributes Keyway A
10 mm
Dimensional Attributes Keyway B
10 mm
Dimensional Attributes Outside Diameter
57 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M6 x 1.0 x 18
Dimensional Attributes Total Length
80 mm
Specifications Alloy
1215
Specifications Approximate Weight
1.97 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
159.49 USD
Specifications Material
Steel
Specifications Part Number
5LM035035FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042706
