Metric Precision Sleeve Couplings with Keyways - Steel
Metric Precision Sleeve Couplings with Keyways - Steel
SKU:ROU-aee1bd
Achieve precise shaft alignment with our Metric Precision Sleeve Couplings - Steel, offering close tolerance fit, zero backlash, and RoHS2 compliance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Metric Precision Sleeve Couplings with Keyways - Steel
$39.99
Quantity: 1
Claim Your Seller Account
Metric Precision Sleeve Couplings with Keyways - Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

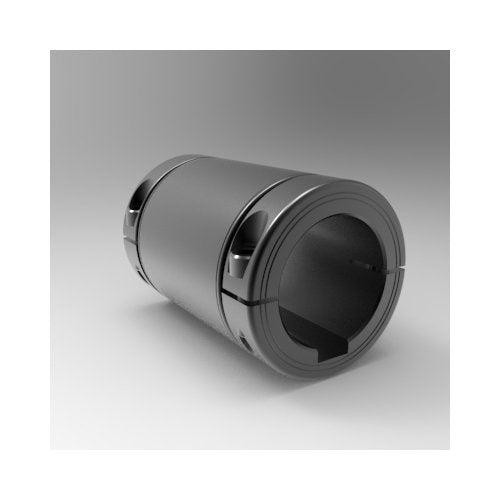

Enhance precision shaft alignment with our Metric Precision Sleeve Couplings featuring a balanced design and integral self-centering clamping collars. Made of high-quality steel alloy with black oxide finish, these couplings offer axial runout less than .001" TIR, zero backlash, and a smooth bore to protect shafts. The solid center section ensures a close tolerance fit on ground shafting, and the inclusion of keyways adds to the secure connection. Stocked with an approximate weight of 0.53 lb, this product is RoHS2 and REACH compliant, made in the USA.
Product Specifications
Dimensional Attributes Bore Size A
15 mm
Dimensional Attributes Bore Size B
15 mm
Dimensional Attributes Keyway A
5 mm
Dimensional Attributes Keyway B
5 mm
Dimensional Attributes Outside Diameter
34 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M5 x 0.8 x 16
Dimensional Attributes Total Length
50 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.53 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
5LM015015KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042539
