Metric Precision Sleeve Couplings with Keyways - Steel
Metric Precision Sleeve Couplings with Keyways - Steel
SKU:ROU-24203c
Achieve unparalleled precision and durability with our Metric Precision Sleeve Couplings. Zero backlash design, steel construction, RoHS2 & REACH compliant.
Regular price
$82.00
Regular price
Sale price
$82.00
Unit price
per
Initiate Order
Metric Precision Sleeve Couplings with Keyways - Steel
$82.00
Quantity: 1
Claim Your Seller Account
Metric Precision Sleeve Couplings with Keyways - Steel
$82.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

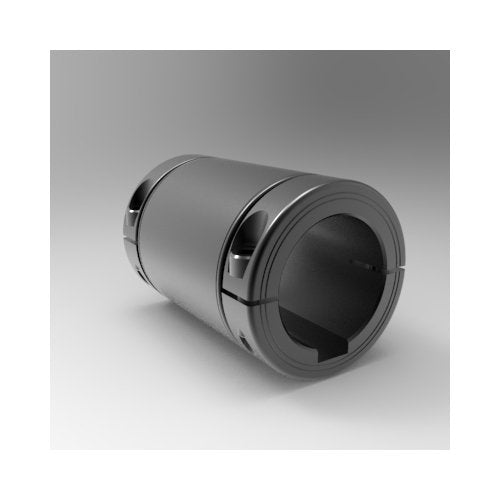

Experience exceptional precision and durability with our Metric One-Piece Split Precision Sleeve Couplings with Keyways. This exclusive design ensures accurate shaft alignment with axial runout less than .001" TIR. The solid center section provides a close tolerance fit on ground shafting, offering zero backlash when mating two shafts. With a smooth bore and integral self-centering clamping collars, this coupling protects shafts from damage and guarantees reliable performance. Made of high-quality steel with a black oxide finish, this precision sleeve coupling is RoHS2 and REACH compliant, meeting strict industry standards for quality and reliability.
Product Specifications
Dimensional Attributes Bore Size A
16 mm
Dimensional Attributes Bore Size B
16 mm
Dimensional Attributes Keyway A
5 mm
Dimensional Attributes Keyway B
5 mm
Dimensional Attributes Outside Diameter
34 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M5 x 0.8 x 16
Dimensional Attributes Total Length
50 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.5 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
82 USD
Specifications Material
Steel
Specifications Part Number
5LM016016KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042546
