Metric Precision Sleeve Couplings with Keyways - Steel, Signature Series

Name: Metric Precision Sleeve Couplings with Keyways - Steel, Signature Series
Brand: Stafford Manufacturing Corp.
SKU: ROU-7744b4
Price: 45.99 USD
Availability: OutOfStock

SKU:ROU-7744b4

Upgrade to precise shaft alignment with our Metric Precision Sleeve Couplings featuring a balanced design, keyways, and zero backlash for optimal performance.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

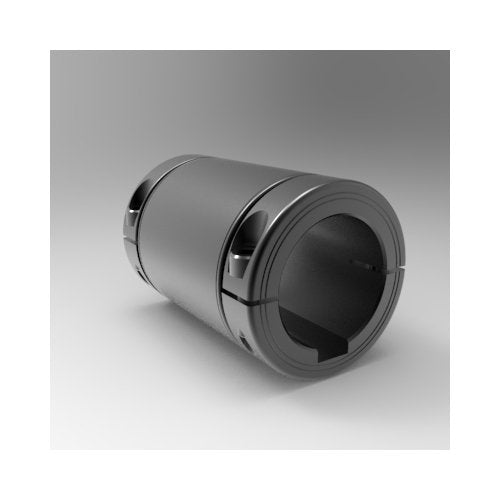

Upgrade your shaft coupling system with our Metric Precision Sleeve Couplings featuring a balanced design for precise shaft alignment. Made of high-quality steel with black oxide finish, these couplings have axial runout less than .001" TIR and assure zero backlash. The solid center section provides a close tolerance fit on ground shafting, while the exclusive Accu-Clamp™ design ensures secure coupling. Keyway included for added stability. Designed and manufactured in the USA, RoHS2 and REACH compliant for quality assurance.

Product Specifications

Dimensional Attributes Bore Size A

30 mm

Dimensional Attributes Bore Size B

30 mm

Dimensional Attributes Keyway A

8 mm

Dimensional Attributes Keyway B

8 mm

Dimensional Attributes Outside Diameter

54 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 16

Dimensional Attributes Total Length

75 mm

Specifications Alloy

1215

Specifications Approximate Weight

1.72 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

5LM030030KPSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786042584
