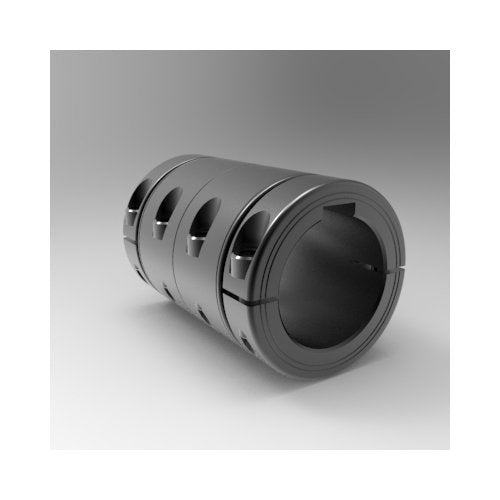

Metric Precision Sleeve Couplings with Keyways - Two-Piece Split Design

Name: Metric Precision Sleeve Couplings with Keyways - Two-Piece Split Design
Brand: Stafford Manufacturing Corp.
SKU: ROU-2e1586
Price: 151.04 USD
Availability: OutOfStock

SKU:ROU-2e1586

Precision Sleeve Couplings for exact shaft alignment, convenient assembly, and high durability. Made in the USA.

$151.04

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your shaft alignment with our Metric Precision Sleeve Couplings. Featuring a balanced design with screw heads in opposing directions, these couplings ensure precise axial runout (< 0.001" TIR). The two-piece split construction allows for easy assembly and adjustment, while the standard keyway and smooth bore protect shafts from damage. With high clamping power and a solid center section, these couplings provide a close tolerance fit. Manufactured in the USA from RoHS2 and REACH compliant steel, it guarantees durability and reliability.

Product Specifications

Dimensional Attributes Bore Size A

20 mm

Dimensional Attributes Bore Size B

20 mm

Dimensional Attributes Keyway A

6 mm

Dimensional Attributes Keyway B

6 mm

Dimensional Attributes Outside Diameter

40 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 18

Dimensional Attributes Total Length

65 mm

Specifications Alloy

1215

Specifications Approximate Weight

0.82 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

151.04 USD

Specifications Material

Steel

Specifications Part Number

5LM020020FKPSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786042676
