Reliable Metric Self-Clinching Receptacle Nuts - M5 x 0.8, Ideal for Metal Sheets, ANSI/ASME Compliant

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

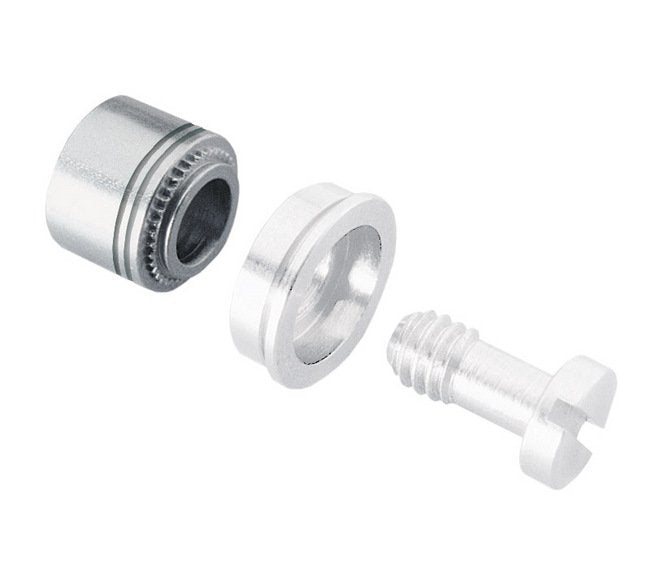

The Metric Self-Clinching Receptacle Nuts - N10 are designed to provide a reliable and secure fastening solution for metal sheets and panels. Featuring a thread size of M5 x 0.8 and made of heat-treated carbon steel with a zinc plated finish, these nuts are suitable for sheets with a minimum thickness of 1mm and hardness up to HRB 80 or HB 150. With precise dimensions and compliance with ANSI/ASME standards, these nuts ensure easy installation and optimal performance in various industrial applications.

Product Specifications

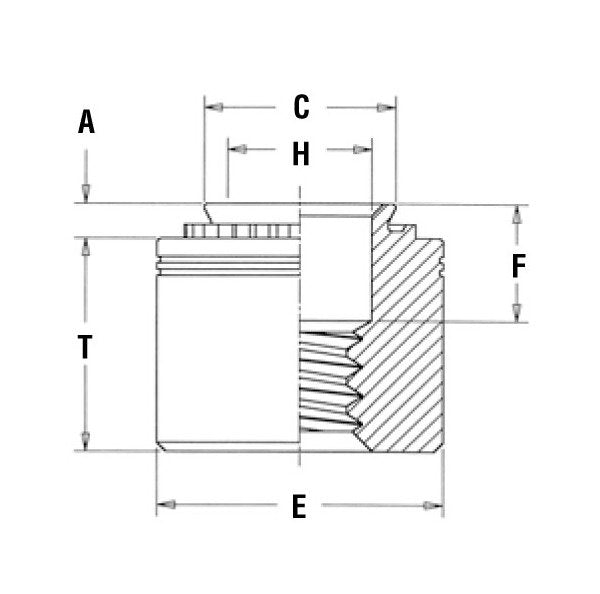

Specifications A Shank Max

0.97 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

7.01 mm

Specifications E Nom

9.53 mm

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications F 025

3.30 mm

Specifications Hole Size In Sheet 008

7.04 mm

Specifications H Nom

5.41 mm

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

7.87 mm

Specifications Min Sheet Thickness

1 mm

Specifications Shank Code

Specifications Thread Code

Specifications Thread Size X Pitch

M5 x 0.8

Specifications Thread Specification

ANSI/ASME B1.13M, 6H

Specifications Type

N10

Specifications T 013

6 mm
