Metric Self-Locating Weld Nuts - PEM WN/WNS
Metric Self-Locating Weld Nuts - PEM WN/WNS
SKU:PEM-448a20
Boost efficiency with PEM® Metric Self-Locating Weld Nuts - WN/WNS. Ideal for thin metal sheets, reducing labor costs and enhancing corrosion resistance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metric Self-Locating Weld Nuts - PEM WN/WNS
$29.99
Quantity: 1
Claim Your Seller Account
Metric Self-Locating Weld Nuts - PEM WN/WNS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

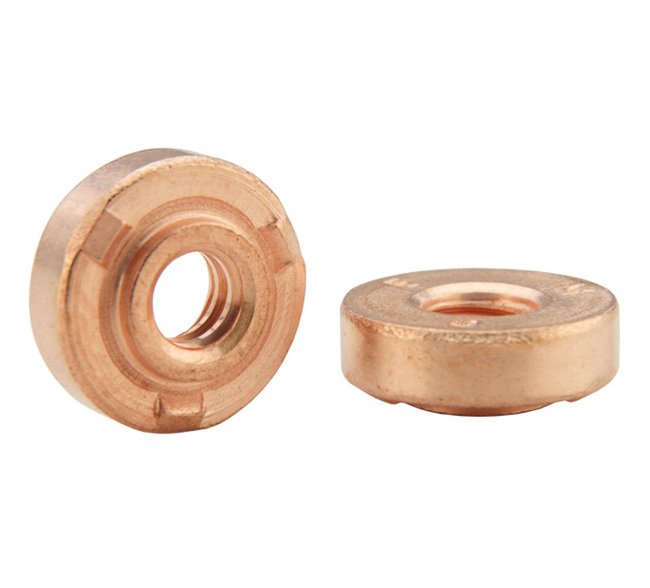

Enhance assembly efficiency with PEM® Metric Self-Locating Projection Weld Nuts Types WN/WNS. Designed for thin metal sheets, these weld nuts offer load-bearing threads, reducing labor costs and eliminating the need for re-tapping. Choose between carbon steel or stainless steel for corrosion resistance. Easy to install with a range of welding equipment, ensuring seamless integration into your operations.

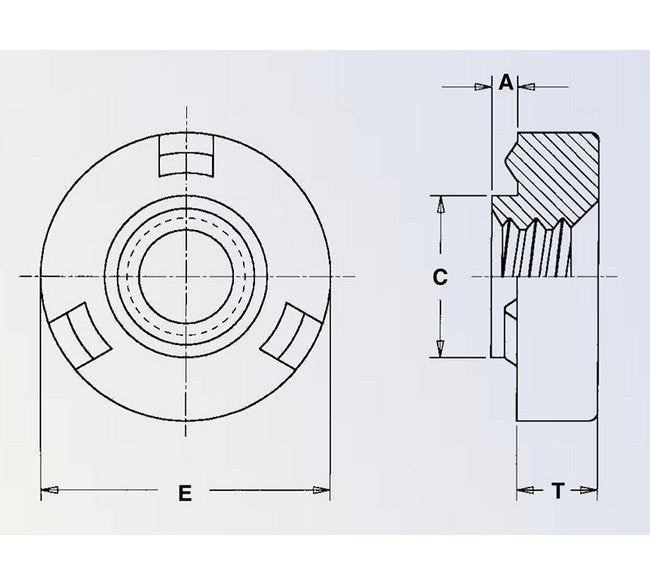

Product Specifications
Specifications A Shank Max
0.77 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
4.37 mm
Specifications E 025
7.82 mm
Specifications Hole Size In Sheet 01
4.40 mm
Specifications Min Dist Hole Cl To Edge
3.91 mm
Specifications Min Sheet Thickness
0.77 mm
Specifications Shank Code
0
Specifications Standard Finish
Copper Flash
Specifications Standard Material
Carbon Steel
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
6H per ASME B1.13M
Specifications Type
WN
Specifications T 01
1.48 mm
