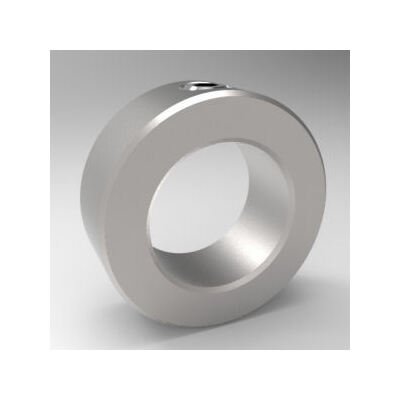

Metric Set-Screw Shaft Collars - Steel-Zinc Plated

Name: Metric Set-Screw Shaft Collars - Steel-Zinc Plated
Brand: Stafford Manufacturing Corp.
SKU: ROU-83895c
Price: 14.99 USD
Availability: OutOfStock

SKU:ROU-83895c

Enhance machinery precision with metric set-screw shaft collars in steel-zinc plated finish. Durable and precise for secure shaft locking.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Shaft Collars Set-Screw Type are ideal for precise positioning on metric shafts. These collars feature fully metric specifications, including the set screw, ensuring compatibility in various applications. Crafted from Steel-Zinc Plated material, these collars offer durability and corrosion resistance. The economy design with a low weight of 0.09 lb makes them a cost-effective solution for shaft locking. With dimensions of 16mm bore size, 28mm outside diameter, and 12mm width, along with an M6 x 8MM alloy steel screw, these collars provide a secure and reliable grip. Enhance your machinery with the precision and reliability of these Metric Set-Screw Shaft Collars.

Product Specifications

Dimensional Attributes Bore Size

16 mm

Dimensional Attributes Outside Diameter

28 mm

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

M6 x 8MM

Dimensional Attributes Width

12 mm

Specifications Alloy

A283grC

Specifications Approximate Weight

0.09 lb

Specifications Country Of Origin

China

Specifications Finish

Zinc Plated

Specifications Material

Steel-Zinc Plated

Specifications Part Number

34LM016P2

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Standard

Specifications Type

Economy

Specifications Upc Code

662786036804
