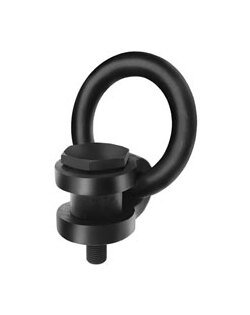

Metric Side Pull Hoist Rings
Metric Side Pull Hoist Rings
SKU:HOI-283f50
Heavy-duty Metric Side Pull Hoist Rings with 5:1 Safety Factor, 360° Swivel, and Alloy Steel construction. Meets OSHA standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Metric Side Pull Hoist Rings
$69.99
Quantity: 1
Claim Your Seller Account
Metric Side Pull Hoist Rings
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Side Pull Hoist Rings are engineered with precision to meet the rigorous demands of industrial applications. Designed for side lifting, these hoist rings provide full swivel and pivot action, eliminating the need to unhook when flipping or turning parts. Crafted from Alloy Steel with a Certified Heat Treat, these rings offer a 5:1 Safety Factor and a 360° swivel capability. With a black oxide finish, these hoist rings not only meet OSHA standards but also pass Magnaflux inspection. Measuring 9.50mm in diameter, with a load rating of 882 pounds (400 kg), these hoist rings are ideal for heavy-duty use, making them a reliable choice for institutional and government procurements.
Product Specifications
Specifications A Radius
25.40 mm
Specifications Country Of Origin
US
Specifications D Diameter
9.50 mm
Specifications E Thread Length
16.00 mm
Specifications Finish
Black Oxide
Specifications G Thread Size
M8x1.25
Specifications Material
Alloy Steel
Specifications P
38.10 mm
Specifications Pivot
180 º
Specifications Ps Load Rated
882 Pounds (400 kg)
Specifications Q
50.80 mm
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Torque
8.00 N·m
Specifications T Stud Length
54.10 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.10 kg
