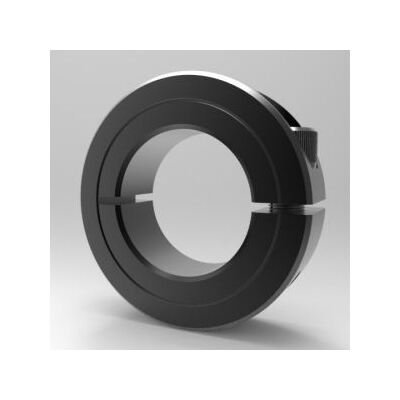

Metric Split Clamp-Type Shaft Collar - 70mm Bore, Black Oxide Finish

Name: Metric Split Clamp-Type Shaft Collar - 70mm Bore, Black Oxide Finish
Brand: Stafford Manufacturing Corp.
SKU: ROU-f34796
Price: 32.99 USD
Availability: OutOfStock

SKU:ROU-f34796

Precision-machined Metric Split Clamp-Type Shaft Collar with 70mm bore, black oxide finish. Superior clamping power with non-marring design.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Split Clamp-Type Shaft Collar with a 70mm bore size is a precision-machined, fully metric product designed to provide superior clamping power over set-screw collars. Made of steel with a black oxide finish, this one-piece collar features a smooth bore that protects shafts from damage. The M8 x 1.25 x 25MM alloy steel screw ensures secure fastening. Ideal for standard round shafts or thin-walled tubes, this collar is non-marring, easy to adjust, and boasts high holding strength. RoHS2 and REACH compliant. Made in the USA.

Product Specifications

Dimensional Attributes Bore Size

70 mm

Dimensional Attributes Outside Diameter

98 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

M8 x 1.25 x 25MM

Dimensional Attributes Width

19 mm

Specifications Alloy

1215

Specifications Approximate Weight

1.21 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

1LM070

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786019067
