Metric Split Heavy Duty Collars with Keyway, 35mm Bore
Metric Split Heavy Duty Collars with Keyway, 35mm Bore
SKU:ROU-1af404
Precision-designed Metric Split Heavy Duty Collars with Keyway for secure shaft clamping. RoHS2 & REACH compliant.
Regular price
$47.89
Regular price
Sale price
$47.89
Unit price
per
Initiate Order
Metric Split Heavy Duty Collars with Keyway, 35mm Bore
$47.89
Quantity: 1
Claim Your Seller Account
Metric Split Heavy Duty Collars with Keyway, 35mm Bore
$47.89
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

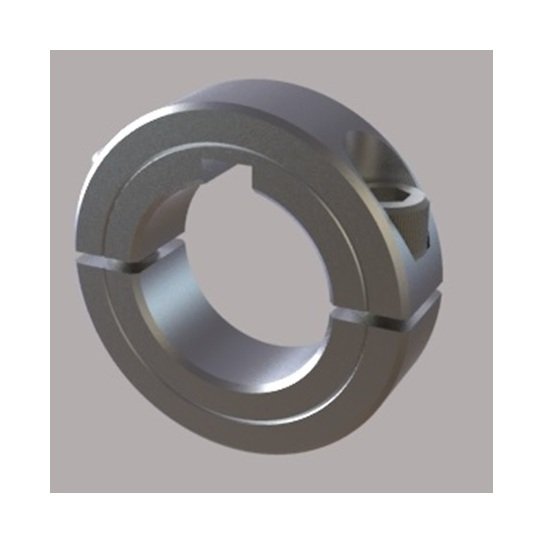

The Metric Two-Piece Split Heavy Duty Collars with Keyway are precision-engineered for versatility and durability. Constructed from high-grade Steel Alloy 1215 with a Black Oxide finish, these collars offer exceptional clamping power to secure shafts effectively. Designed to protect shafts from damage, the collars feature a 10mm keyway, allowing for secure positioning on shafts. With RoHS2 and REACH compliance, these collars are the ideal choice for industrial applications requiring precision and reliability.
Product Specifications
Dimensional Attributes Bore Size
35 mm
Dimensional Attributes Keyway
10 mm
Dimensional Attributes Outside Diameter
63 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
18 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.56 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
47.89 USD
Specifications Material
Steel
Specifications Part Number
2LM035HDK
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Heavy Duty
Specifications Upc Code
662786044618
