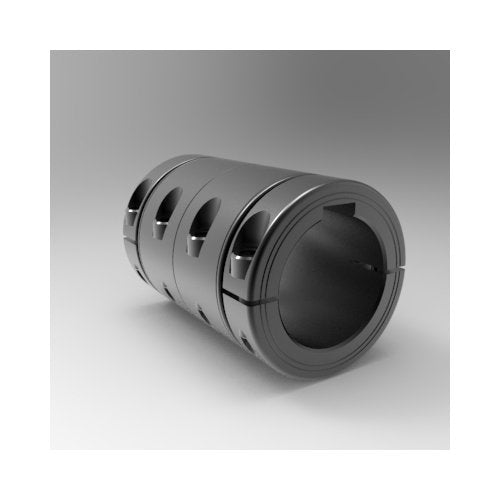

Metric Split Precision Sleeve Couplings with Keyways
Metric Split Precision Sleeve Couplings with Keyways
SKU:ROU-4ab053
Achieve precise shaft alignment with our Metric Split Precision Sleeve Couplings. Easy assembly, high clamping power, and shaft protection in a steel design.
Regular price
$119.90
Regular price
Sale price
$119.90
Unit price
per
Initiate Order
Metric Split Precision Sleeve Couplings with Keyways
$119.90
Quantity: 1
Claim Your Seller Account
Metric Split Precision Sleeve Couplings with Keyways
$119.90
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your shaft alignment with our Metric Split Precision Sleeve Couplings featuring a solid center section for a close tolerance fit. This two-piece coupling includes a keyway and self-centering clamping collars for precise assembly and adjustment. Made of black oxide-finished steel, it offers axial runout less than 0.001" TIR, ensuring high clamping power and easy adjustability while protecting shafts from damage. Contact our Sales Dept for questions.
Product Specifications
Dimensional Attributes Bore Size A
12 mm
Dimensional Attributes Bore Size B
12 mm
Dimensional Attributes Keyway A
4 mm
Dimensional Attributes Keyway B
4 mm
Dimensional Attributes Outside Diameter
28 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M4 x 0.7 x 12
Dimensional Attributes Total Length
45 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.33 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
119.9 USD
Specifications Material
Steel
Specifications Part Number
5LM012012FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042621
