Metric Split Precision Sleeve Couplings with Keyways
Metric Split Precision Sleeve Couplings with Keyways
SKU:ROU-1ca8e4
Enhance shaft alignment with precision. Convenient assembly & adjustment. Steel construction, RoHS2 & REACH compliant.
Regular price
$125.34
Regular price
Sale price
$125.34
Unit price
per
Initiate Order
Metric Split Precision Sleeve Couplings with Keyways
$125.34
Quantity: 1
Claim Your Seller Account
Metric Split Precision Sleeve Couplings with Keyways
$125.34
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

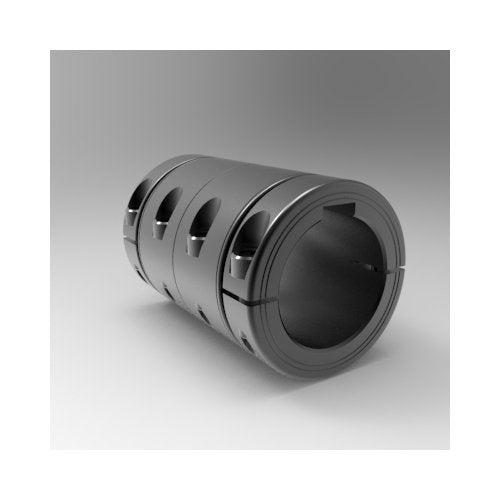

The Metric Two-Piece Split Precision Sleeve Couplings with Keyways are expertly crafted to ensure precise shaft alignment with axial runout less than .001" TIR. This two-piece design allows for convenient assembly and adjustment, featuring a standard keyway and a smooth bore to protect shafts from damage. With a solid center section for a close tolerance fit on ground shafting, these couplings incorporate the Accu-Clamp™ self-centering clamping collars at both ends for enhanced stability and high clamping power. Made of steel, RoHS2 and REACH compliant, this coupling is easy to adjust, non-marring, and meets stringent quality standards.
Product Specifications
Dimensional Attributes Bore Size A
18 mm
Dimensional Attributes Bore Size B
18 mm
Dimensional Attributes Keyway A
6 mm
Dimensional Attributes Keyway B
6 mm
Dimensional Attributes Outside Diameter
36 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M5 x 0.8 x 16
Dimensional Attributes Total Length
60 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.63 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
125.34 USD
Specifications Material
Steel
Specifications Part Number
5LM018018FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042669
