Metric Split Weldable Shaft Collars with Keyways - 45mm Bore
Metric Split Weldable Shaft Collars with Keyways - 45mm Bore
SKU:ROU-1d7b7a
High-quality Metric Split Weldable Shaft Collars with Keyways for secure shaft connections. Lead-free, RoHS2 & REACH compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Metric Split Weldable Shaft Collars with Keyways - 45mm Bore
$34.99
Quantity: 1
Claim Your Seller Account
Metric Split Weldable Shaft Collars with Keyways - 45mm Bore
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

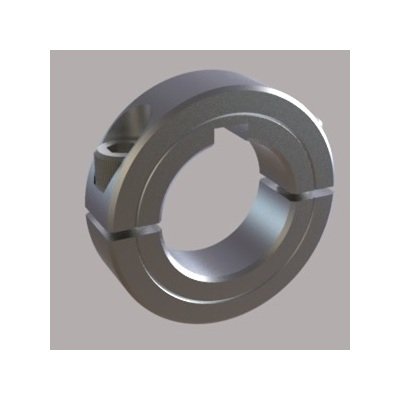

The Metric Two-Piece Split Weldable Shaft Collars with Keyways, part of the Signature Series, are crafted from 1018 steel with a black oxide finish. These collars feature a smooth bore to protect shafts, offering superior holding power over set-screw types. Fully metric with clamp screws, this low-profile collar is precision machined, non-marring, easily adjustable, and has high clamping power. Ideal for use on standard round shafts or split hubs, they are lead-free for safe welding, RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Bore Size
45 mm
Dimensional Attributes Keyway
14 mm
Dimensional Attributes Outside Diameter
73 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
19 mm
Specifications Alloy
1018
Specifications Approximate Weight
0.82 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2MWM045K
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042256
