Metric Stainless Steel Heavy Duty Shaft Collars with Keyway, 40mm Bore

Name: Metric Stainless Steel Heavy Duty Shaft Collars with Keyway, 40mm Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-e61b64
Price: 34.99 USD
Availability: OutOfStock

SKU:ROU-e61b64

Precision-machined Metric SS Heavy Duty Collars with high clamping power and keyway. RoHS2/REACH compliant.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

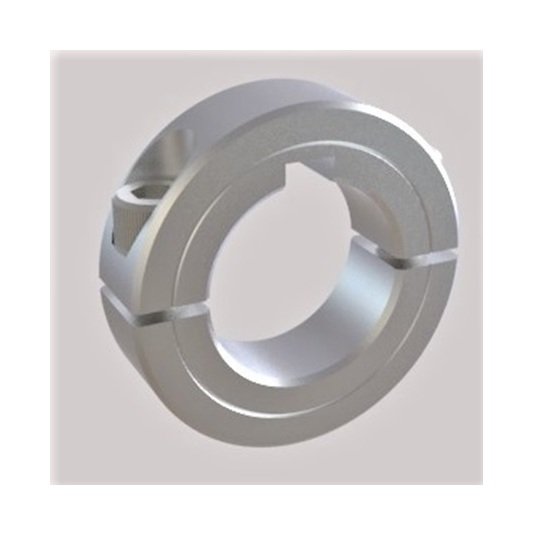

The Metric Stainless Steel Two-Piece Split Heavy Duty Collars with Keyway offer precision machining, full metric specifications, and high clamping power. These collars are designed for versatile shaft applications, featuring a 40mm bore, 66mm outside diameter, and 18mm width. With RoHS2 and REACH compliance, these collars provide durability and reliability for industrial and institutional use. Clamp securely with M8 x 1.25 x 25MM screws. Made in the USA.

Product Specifications

Dimensional Attributes Bore Size

40 mm

Dimensional Attributes Keyway

12 mm

Dimensional Attributes Outside Diameter

66 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M8 x 1.25 x 25MM

Dimensional Attributes Width

18 mm

Specifications Alloy

303

Specifications Approximate Weight

0.58 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

2SM040HDK

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

18-8 Stainless Steel

Specifications Series

Signature

Specifications Type

Heavy Duty

Specifications Upc Code

662786044823

Metric Stainless Steel Heavy Duty Shaft Collars with Keyway, 40mm Bore
