Metric Steel Blind Nut with Base Plate - PEM VariMount
Metric Steel Blind Nut with Base Plate - PEM VariMount
SKU:PEM-90fc8d
Secure and versatile Metric Steel Blind Nut with Base Plate, ideal for industrial applications, featuring M3 x 0.5 Thread Size.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Metric Steel Blind Nut with Base Plate - PEM VariMount
$25.99
Quantity: 1
Claim Your Seller Account
Metric Steel Blind Nut with Base Plate - PEM VariMount
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

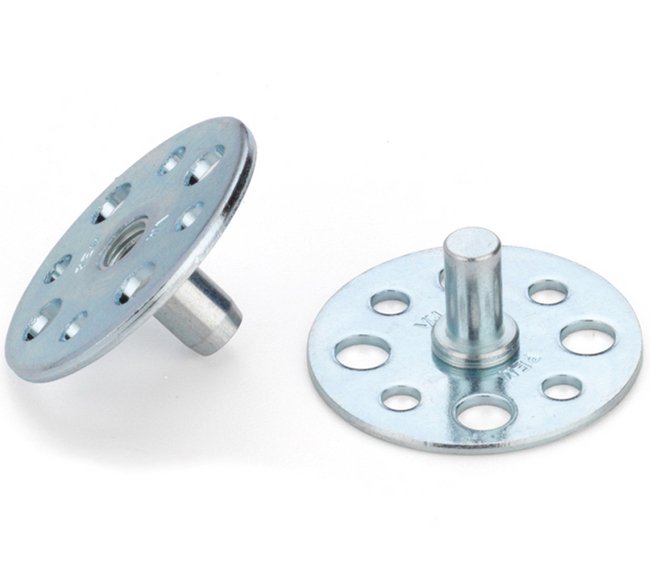

The Metric Steel Blind Nut with Base Plate from PEM® VariMount® offers a reliable fastening solution, eliminating the need for welding. Constructed with steel materials and zinc plating per ASTM B633, SC1 specifications, it ensures durability and corrosion resistance. Featuring a Thread Size of M3 x 0.5 and a range of precise attributes, this assembly provides versatile mounting options for different panel types. Ideal for industrial applications requiring secure and permanent fastening with easy installation.

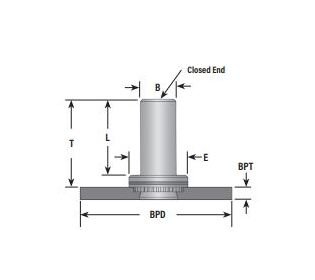

Product Specifications
Specifications Base Plate Material
Steel
Specifications Bpd 042
30 mm
Specifications Bpt 01
1.2 mm
Specifications B Max
3.84 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications E 025
6.35 mm
Specifications Fastener Material
Steel
Specifications L Max
8.5 mm
Specifications Material Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Shank Code
1
Specifications Thread Code
M3
Specifications Thread Size
M3 x 0.5
Specifications Type
VM
Specifications T 025
9.6 mm
