Metric Steel Shaft Collar 45mm Bore

Name: Metric Steel Shaft Collar 45mm Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-5c2224
Price: 15.99 USD
Availability: OutOfStock

SKU:ROU-5c2224

Precision machined Metric Steel Shaft Collar with 45mm bore, high clamping power, RoHS2 & REACH compliant.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

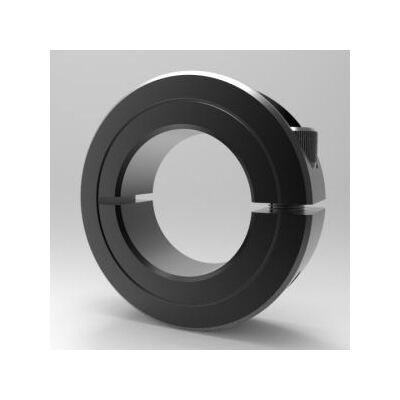

The Metric Steel Shaft Collar 45mm Bore is a precision-machined one-piece clamp-type collar suitable for standard round shafts or thin-wall tubes. Designed with a smooth bore to protect shafts and featuring high clamping power, this collar offers superior holding strength over set-screw types. Made of A283grC Steel with a black oxide finish, it is RoHS2 and REACH compliant. The collar comes with an M6 x 1.0 x 18mm alloy steel clamp screw and measures 73mm in outside diameter and 19mm in width.

Product Specifications

Dimensional Attributes Bore Size

45 mm

Dimensional Attributes Outside Diameter

73 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

M6 x 1.0 x 18MM

Dimensional Attributes Width

19 mm

Specifications Alloy

A283grC

Specifications Approximate Weight

0.85 lb

Specifications Country Of Origin

China

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

31LM045

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Standard

Specifications Type

Economy

Specifications Upc Code

662786035753
