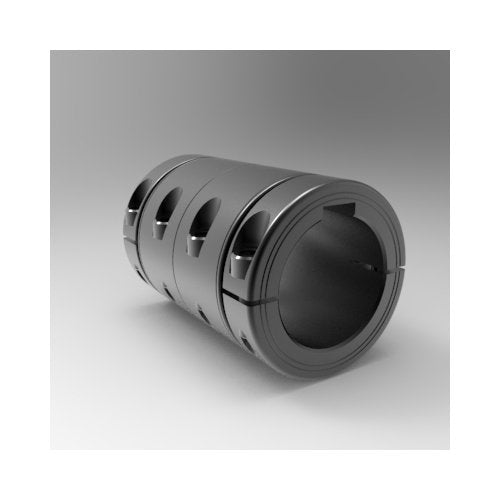

Metric Steel Split Precision Sleeve Couplings with Keyways

Name: Metric Steel Split Precision Sleeve Couplings with Keyways
Brand: Stafford Manufacturing Corp.
SKU: ROU-7c0910
Price: 39.99 USD
Availability: OutOfStock

Achieve precise shaft alignment with the Metric Steel Split Precision Sleeve Couplings - perfect for industrial applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Steel Split Precision Sleeve Couplings with Keyways are meticulously designed for precise shaft alignment, boasting axial runout less than 0.001" TIR. This precision sleeve coupling features a solid center section that ensures a close tolerance fit on ground shafting, includes keyways, and incorporates integral self-centering clamping collars at both ends. With a fully metric construction, convenient assembly and adjustment of this two-piece coupling is guaranteed. The non-marring, easy-to-adjust design with high clamping power is ideal for various industrial applications.

Product Specifications

Dimensional Attributes Bore Size A

16 mm

Dimensional Attributes Bore Size B

16 mm

Dimensional Attributes Keyway A

5 mm

Dimensional Attributes Keyway B

5 mm

Dimensional Attributes Outside Diameter

34 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M5 x 0.8 x 16

Dimensional Attributes Total Length

50 mm

Specifications Alloy

1215

Specifications Approximate Weight

0.56 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

5LM016016FKPSC

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Precision Sleeve

Specifications Upc Code

662786042652

Metric Steel Split Precision Sleeve Couplings with Keyways
