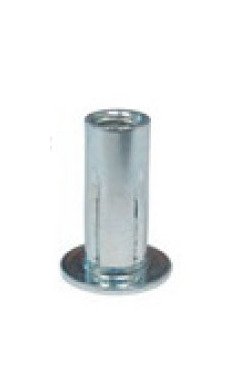

Metric Steel Split Rivet Nut - 38.7mm Reference Dimension L1

Name: Metric Steel Split Rivet Nut - 38.7mm Reference Dimension L1
Brand: Ornit USA
SKU: MET-3e1152
Price: 14.99 USD
Availability: OutOfStock

SKU:MET-3e1152

High-quality Metric Steel Split Rivet Nut, 38.7mm size. Steel with zinc finish, M10 x 1.5 thread. Durable, corrosion-resistant. Meets procurement standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Steel Split Rivet Nut in 38.7mm reference dimension L1 is a high-quality fastening solution designed for durability and reliability. Made from steel with a zinc finish, it offers excellent corrosion resistance and strength. With a thread size of M10 x 1.5 (3/8 in) and options for stainless steel or aluminum materials, this rivet nut is versatile for various applications. Its dimensions ensure a secure grip size range of 7.10mm to 12.70mm, suitable for a wide range of hole sizes (13.07mm to 13.26mm). Compliant with industry standards, this rivet nut meets the stringent requirements of government and institutional procurement.

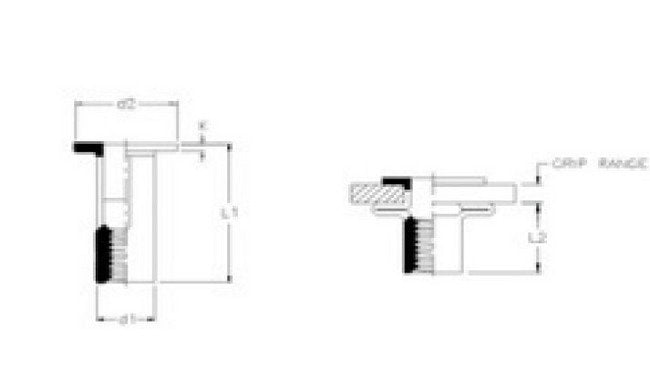

Product Specifications

Dimensions Maximum Dimension D1

13.06 mm

Dimensions Maximum Grip Size

12.70 mm

Dimensions Maximum Hole Size

13.26 mm

Dimensions Minimum Grip Size

7.10 mm

Dimensions Minimum Hole Size

13.07 mm

Dimensions Reference Dimension D2

22.2 mm

Dimensions Reference Dimension K

2.24 mm

Dimensions Reference Dimension L1

38.7 mm

Dimensions Reference Dimension L2

15.8 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc

Technical Specs Material

Steel

Technical Specs Thread Size

M10 x 1.5 | 3/8 in
