Metric T-Slot Nuts DIN 508 - 8mm x 18mm
Metric T-Slot Nuts DIN 508 - 8mm x 18mm
SKU:TSL-1b13b1
High-strength Metric T-Slot Nuts DIN 508 - Thread: 8mm, Slot Width: 18mm. Compliant with DIN 508 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metric T-Slot Nuts DIN 508 - 8mm x 18mm
$29.99
Quantity: 1
Claim Your Seller Account
Metric T-Slot Nuts DIN 508 - 8mm x 18mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

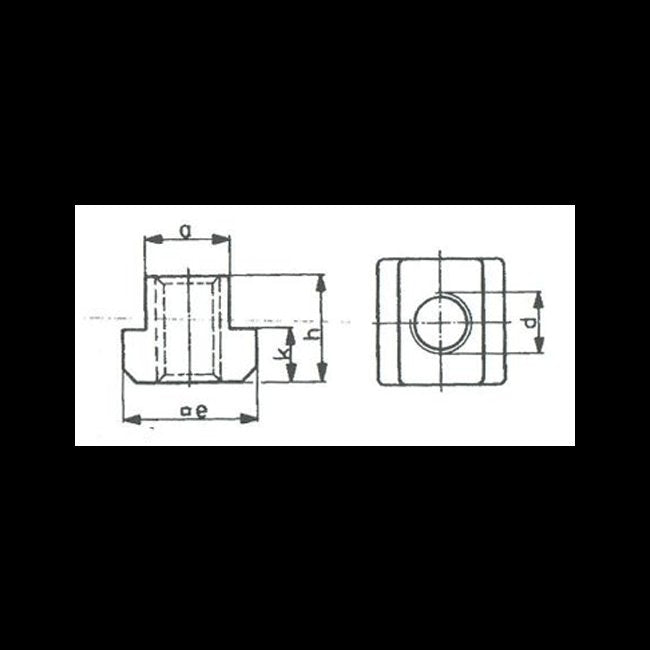

The Metric T-Slot Nuts DIN 508 are precision-crafted for secure fastening in T-slot systems. Heat-treated to tensile strength class 10, these nuts ensure reliable performance and durability. With a thread size of 8mm and a nominal slot width of 18mm, these nuts meet stringent DIN 508 standards. The exact slot width is 17.7mm with a bottom width of 28mm and an overall height of 20mm. The height of the first step is 10mm, providing versatility for various applications. Additional special patterns are available upon request, making these nuts adaptable to specific needs.
Product Specifications
Specifications Availability
To Be Advised
Specifications Bottom Widthe Mm
28
Specifications Exact Slot Widtha Mm
17.7
Specifications Height First Stepk Mm
10
Specifications Nominal Slot Width A Mm
18
Specifications Oa Height H Mm
20
Specifications Thread Sized Mm
8
