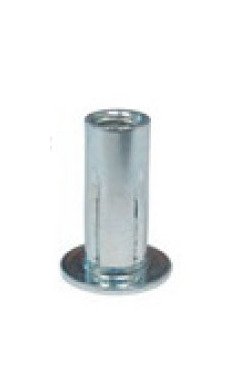

Metric Thread Rivet Nut M6 x 1.0 | 1/4 in
Metric Thread Rivet Nut M6 x 1.0 | 1/4 in
SKU:MET-1511aa
High-quality Metric Thread Rivet Nut for versatile fastening needs, featuring durable steel construction and zinc finish. Complies with industry standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Metric Thread Rivet Nut M6 x 1.0 | 1/4 in
$14.99
Quantity: 1
Claim Your Seller Account
Metric Thread Rivet Nut M6 x 1.0 | 1/4 in
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 32.8mm Reference Dimension L1 Split Rivet Nut from Ornit is a durable and reliable metric thread fastening solution made of high-quality steel with a zinc finish. With a grip size range of 7.10mm to 12.70mm and various hole size compatibility, this rivet nut offers versatility for a wide range of applications. Notably, it meets stringent industry standards and is available in Stainless Steel and Aluminum options for added customization.

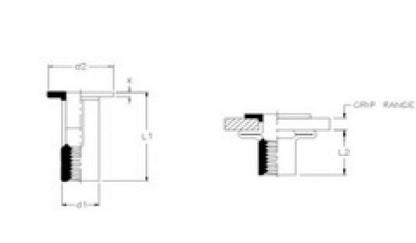

Product Specifications
Dimensions Maximum Dimension D1
8.79 mm
Dimensions Maximum Grip Size
12.70 mm
Dimensions Maximum Hole Size
8.93 mm
Dimensions Minimum Grip Size
7.10 mm
Dimensions Minimum Hole Size
8.80 mm
Dimensions Reference Dimension D2
15.9 mm
Dimensions Reference Dimension K
1.50 mm
Dimensions Reference Dimension L1
32.8 mm
Dimensions Reference Dimension L2
12.8 mm
Note Note
Stainless Steel & Aluminum are available.
Technical Specs Brands
Ornit
Technical Specs Finish
Zinc
Technical Specs Material
Steel
Technical Specs Thread Size
M6 x 1.0 | 1/4 in
