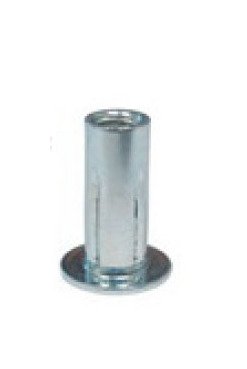

Metric Thread Split Rivet Nut M4 x 0.7, Zinc-Coated Steel

Name: Metric Thread Split Rivet Nut M4 x 0.7, Zinc-Coated Steel
Brand: Ornit USA
SKU: MET-b857ec
Price: 14.99 USD
Availability: OutOfStock

SKU:MET-b857ec

High-quality 20.8mm Split Rivet Nut, M4 x 0.7, Steel with Zinc Finish. Durable and Versatile. Compliant with Industry Standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 20.8mm Reference Dimension L1 Split Rivet Nut is a high-quality metric thread fastener designed for industrial applications. Crafted from durable steel with a corrosion-resistant zinc finish, this rivet nut ensures reliable strength and longevity. With a grip size range of 3.80mm to 6.85mm and precise hole sizes between 6.13mm to 6.25mm, it offers versatile installation options. Compliant with strict industry standards, including stainless steel and aluminum material options available.

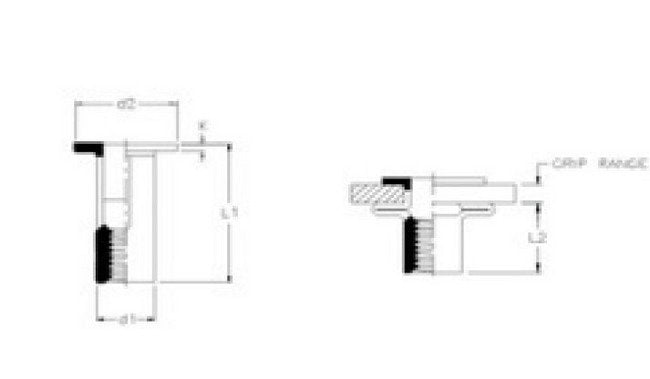

Product Specifications

Dimensions Maximum Dimension D1

6.12 mm

Dimensions Maximum Grip Size

6.85 mm

Dimensions Maximum Hole Size

6.25 mm

Dimensions Minimum Grip Size

3.80 mm

Dimensions Minimum Hole Size

6.13 mm

Dimensions Reference Dimension D2

11.1 mm

Dimensions Reference Dimension K

0.96 mm

Dimensions Reference Dimension L1

20.8 mm

Dimensions Reference Dimension L2

8.6 mm

Note Note

Stainless Steel & Aluminum are available.

Technical Specs Brands

Ornit

Technical Specs Finish

Zinc

Technical Specs Material

Steel

Technical Specs Thread Size

M4 x 0.7 (#8;)

Metric Thread Split Rivet Nut M4 x 0.7, Zinc-Coated Steel
