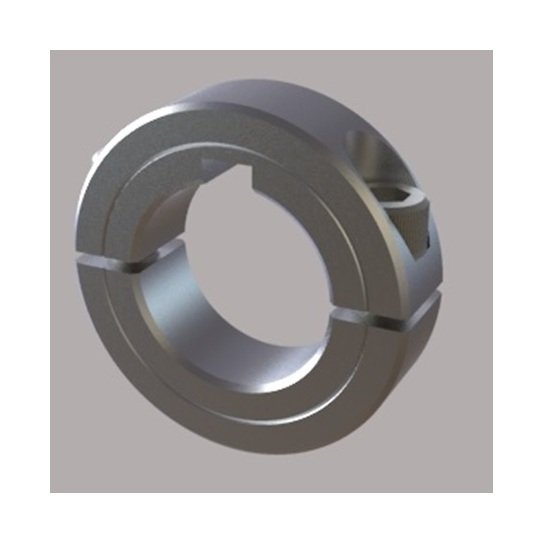

Metric Two-Piece Split Heavy Duty Collars with Keyway - 10mm Bore

Name: Metric Two-Piece Split Heavy Duty Collars with Keyway - 10mm Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-33d995
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-33d995

Precision machined Metric Two-Piece Split Heavy Duty Collars with Keyway for superior clamping on 10mm shafts.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Two-Piece Split Heavy Duty Collars with Keyway offer superior clamping power and precision machining. Fully metric and featuring larger clamp screws for added stability, these collars protect shafts from damage, fitting round shafts, thin wall tubes, or split hubs effortlessly. Available in steel or stainless steel, these collars are adjustable, non-marring, and designed for high performance. Perfect for industrial applications requiring reliability and strength.

Product Specifications

Dimensional Attributes Bore Size

10 mm

Dimensional Attributes Keyway

3 mm

Dimensional Attributes Outside Diameter

30 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M4 x .7 x 12MM

Dimensional Attributes Width

12 mm

Specifications Alloy

1215

Specifications Approximate Weight

0.11 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2LM010HDK

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Heavy Duty

Specifications Upc Code

662786044526
